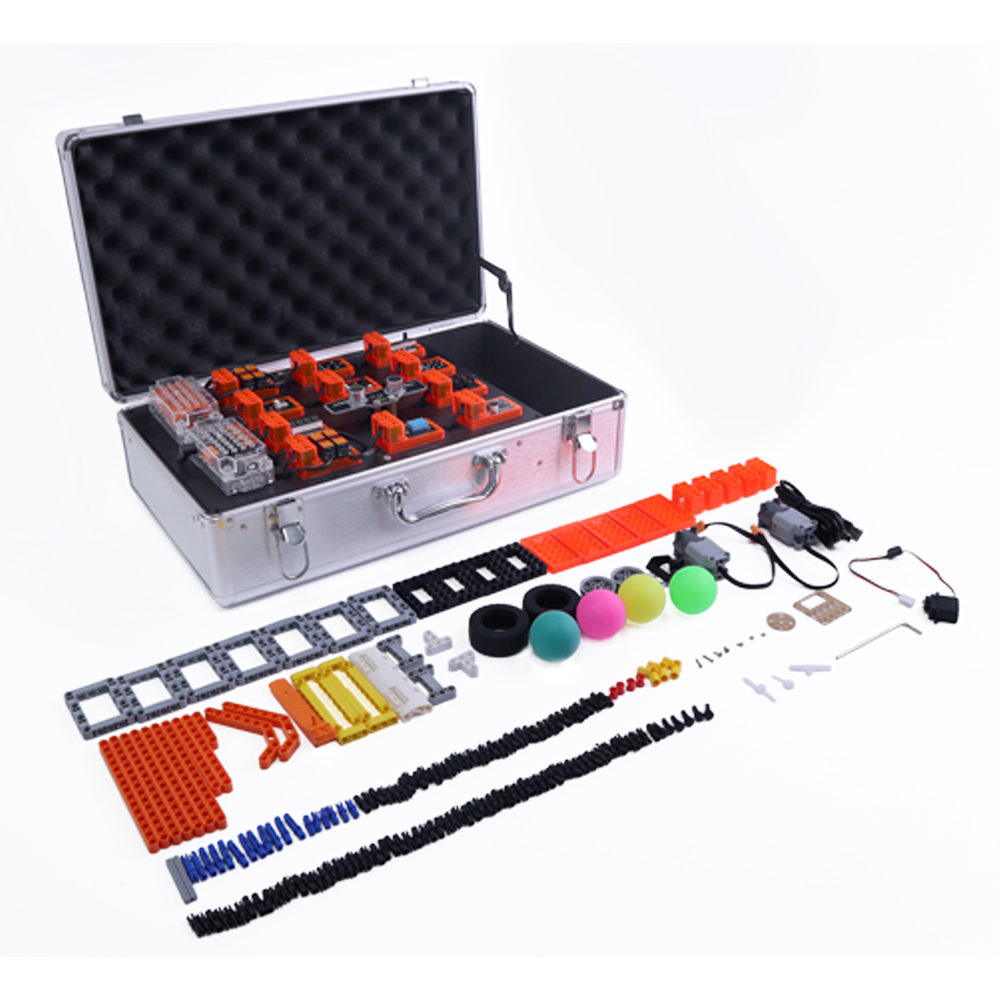

AI Advanced Kit

The AI Advanced Kit is a level-up kit that lead students design and create a virtual AI assistant through “Project-based Learning”.

Quantity:



Inquire Add to Basket

Details

The Weeemake AI Advanced Kit is a level-up kit that led students design and create a virtual AI assistant through “Project-based Learning”. Students learn about new knowledge of gesture sensor, compass sensor, image recognition, etc.

ELF mini V3.0
WEEEMAKE ELF mini V3.0 is an integrated, compact design robot control board for STEM education. With rich onboard sensors, onboard charging circuit, RJ11 wiring port, transparent PC shell protection, there are Lego-compatible holes and M4 screws on it for easy installation.

Operation Voltage:	6-12V
MCU:	ATmega 328p or ESP32
Wiring Port:	4x RJ11 port
	2 x DC motor port
	1 x Wireless communication port (Bluetooth 2.4G)
	1x USB port (type B)
Onboard Electronics:	1x Sound sensor
	1x Light sensor
	1x IR Receiver
	2x Red LED
	2x Yellow LED
	4x Blue LED (Power Indicator)
Software:	WeeeCode (Scratch 3.0), Arduino IDE

Curriculum

Chapter	No.	Lesson	Learning Hour	School Class
Chapter 1: AI Programming and Hardware	1	1. Artificial Intelligence and Programming Technology	45 mins	1 lesson
	2	2. Artificial Intelligence and Hardware Application	45 mins	1 lesson
Chapter 2: AI Detection Expert	3	3. AI Weather Station	45 mins	1 lesson
	4	4. AI Distance Detector	45 mins	1 lesson
	5	5. Accurate Distance and Direction	45 mins	1 lesson
Chapter 3: AI Learning Assistant	6	6. Learning Supervisor	45 mins	1 lesson
	7	7. Text to Speech	45 mins	1 lesson
	8	8. AI Time Assistant	45 mins	1 lesson
	9	9. Smart Coded Lock	45 mins	1 lesson
Chapter 4: AI Game Partner	10	10. AI Magician	45 mins	1 lesson
	11	11. Gesture Control Piano	45 mins	1 lesson
	12	12. Dodgeball AI Robot	45 mins	1 lesson
	13	13. Quick? Quicker!	45 mins	1 lesson
Chapter 5: AI Smart Racing Car	14	14. AI Smart Car	45 mins	1 lesson
	15	15. Color Tracker	45 mins	1 lesson
	16	16. AI Robot Exploration	45 mins	1 lesson

Parameter

SKU: 180024 AI Advanced Kit

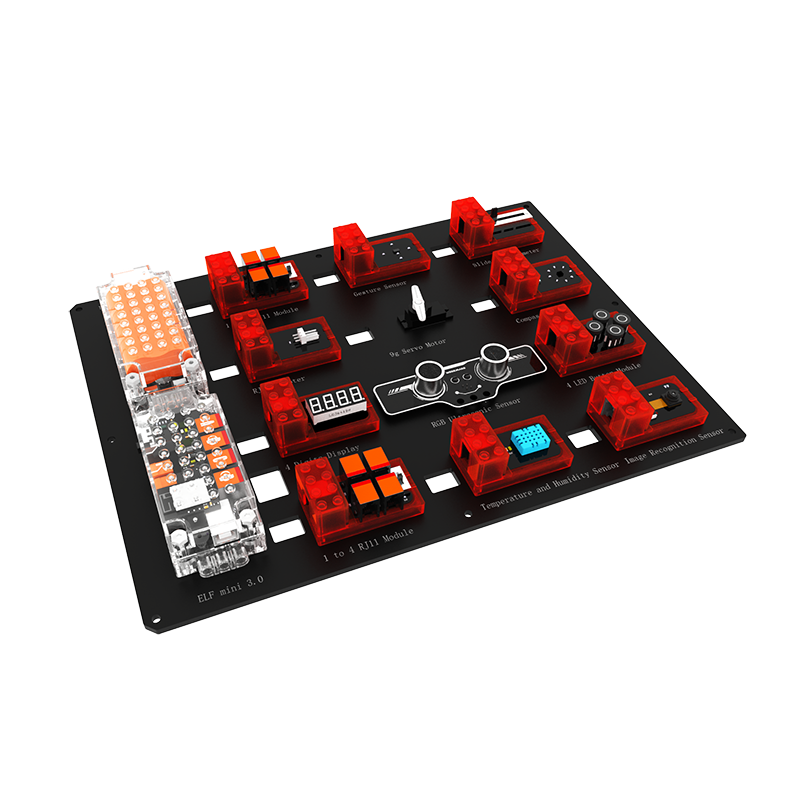

Mainboard:
ELF mini V3.0 (Atmega 328P)
Operating Voltage:
6-12V (18650 Lithium battery pack included)
On-board Sensor:
Light Sensor, Sound Sensor, IR, LED, Buzzer
External Sensor and Motors:
Image Recognition Sensor, Gesture Sensor, Compass Sensor, Temperature and Humidity Sensor, RGB Ultrasonic Sensor, 4 Digits Display, Slide Potentiometer, 1 to 4 RJ11 Module, RJ11 Adapter, 4 LED Button Module
Motor:
9V TT Motor; 9g Servo Pack
Communication:
Bluetooth, IR, 2.4G(optional)
Program Software:
WeeeCode (Scratch 3.0)
Arduino IDE
