Details

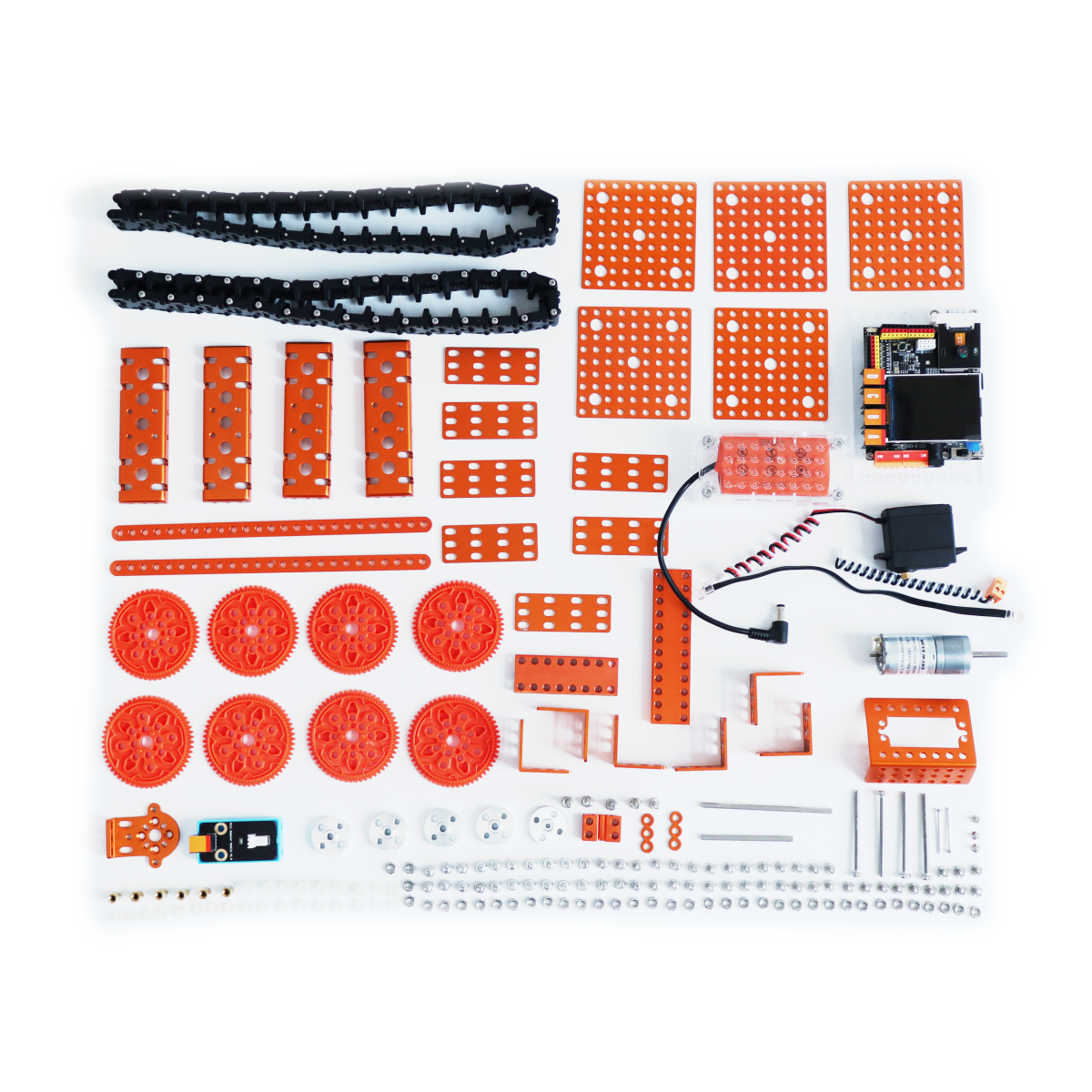

Versatile: The kit includes a variety of components, such as a camera module, microphone module, and sensor modules, allowing users to experiment with a wide range of AI applications. This versatility makes the kit an excellent choice for exploring different aspects of AI and machine learning.
Edge Computing: The K210 AI chip is designed for edge computing, which means that it can run machine learning algorithms locally, without requiring an internet connection. This makes the kit an excellent choice for developing machine learning applications that can operate in environments where internet connectivity may be limited or unreliable.
Educational: The kit is specifically designed for AI education, providing students and educators with a hands-on experience of developing and deploying machine learning applications. This practical experience is invaluable for understanding the concepts and challenges of AI and machine learning.
| No. | Curriculum | Course content | No. | Curriculum | Course content |
| 1 | Factory Study -Start | Design a game to start the study of the AI factory, and get familiar with the WeeeCode programming and algorithm. | 5 | Smart Warehouse Robot | Learn to load and use the object recognition model. |
| 2 | AI Factory Gate - Structure Design | Know the structure of various types of structures, learn the mainboard, and design an AI factory gate. | 6 | Color Block LAB collection | Learn the color model LAB, learn to use the color space to collect the LAB value, and learn single color recognition. |
| 3 | AI Factory Gate -Program Design | Learn to load and use the label and QR code recognition model. | 7 | AI Sorting Robot - Structure Design | Through the modification of the warehouse robot, use a servo motor to make an AI sorting robot. |

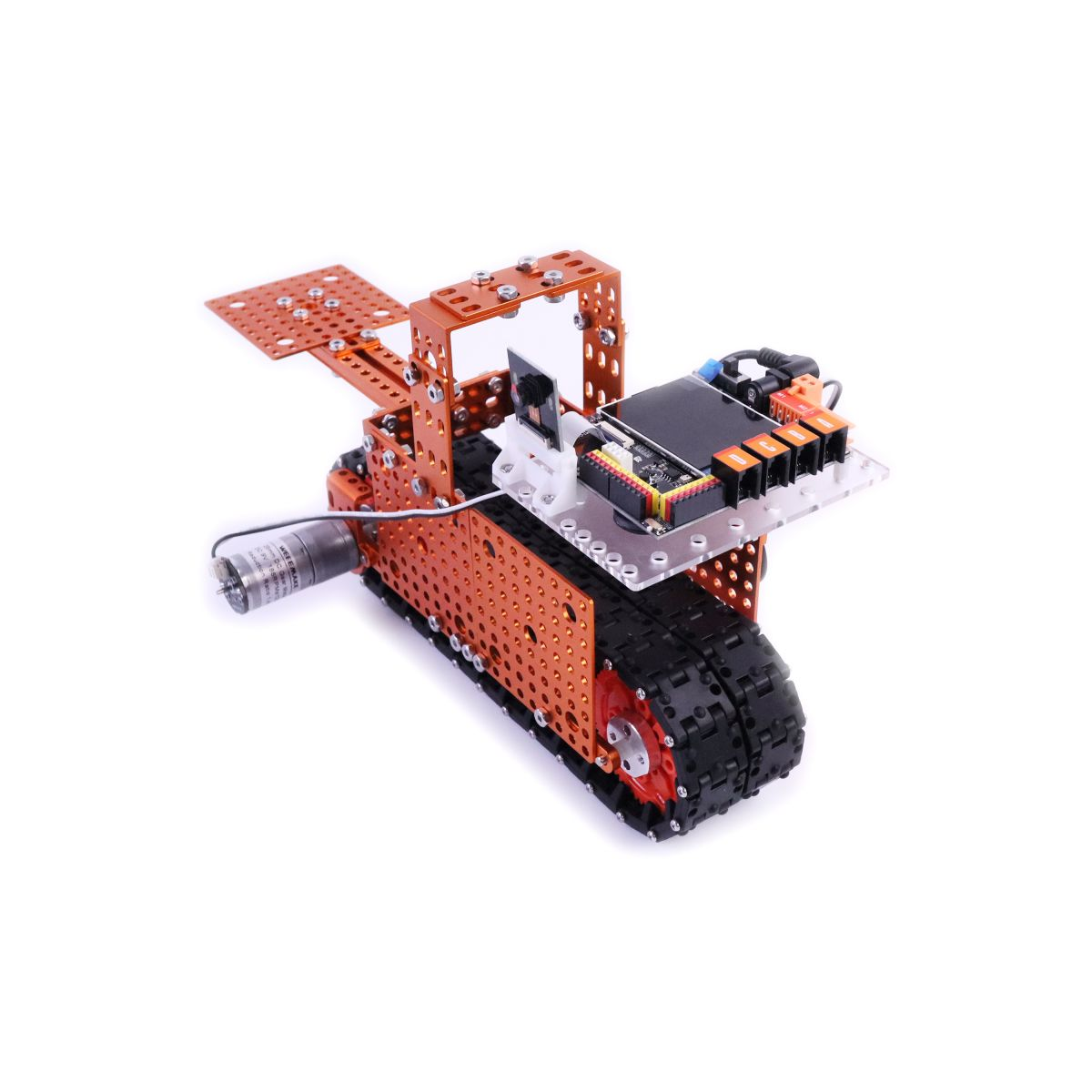

| 4 | Warehouse Robot - Structure Design | Recognize various structural parts and analyze robot structure, design a warehouse transportation robot. | 8 | AI Sorting Robot - Program Design | Comprehensive use of the knowledge learned in the previous course for programming |
Parameter

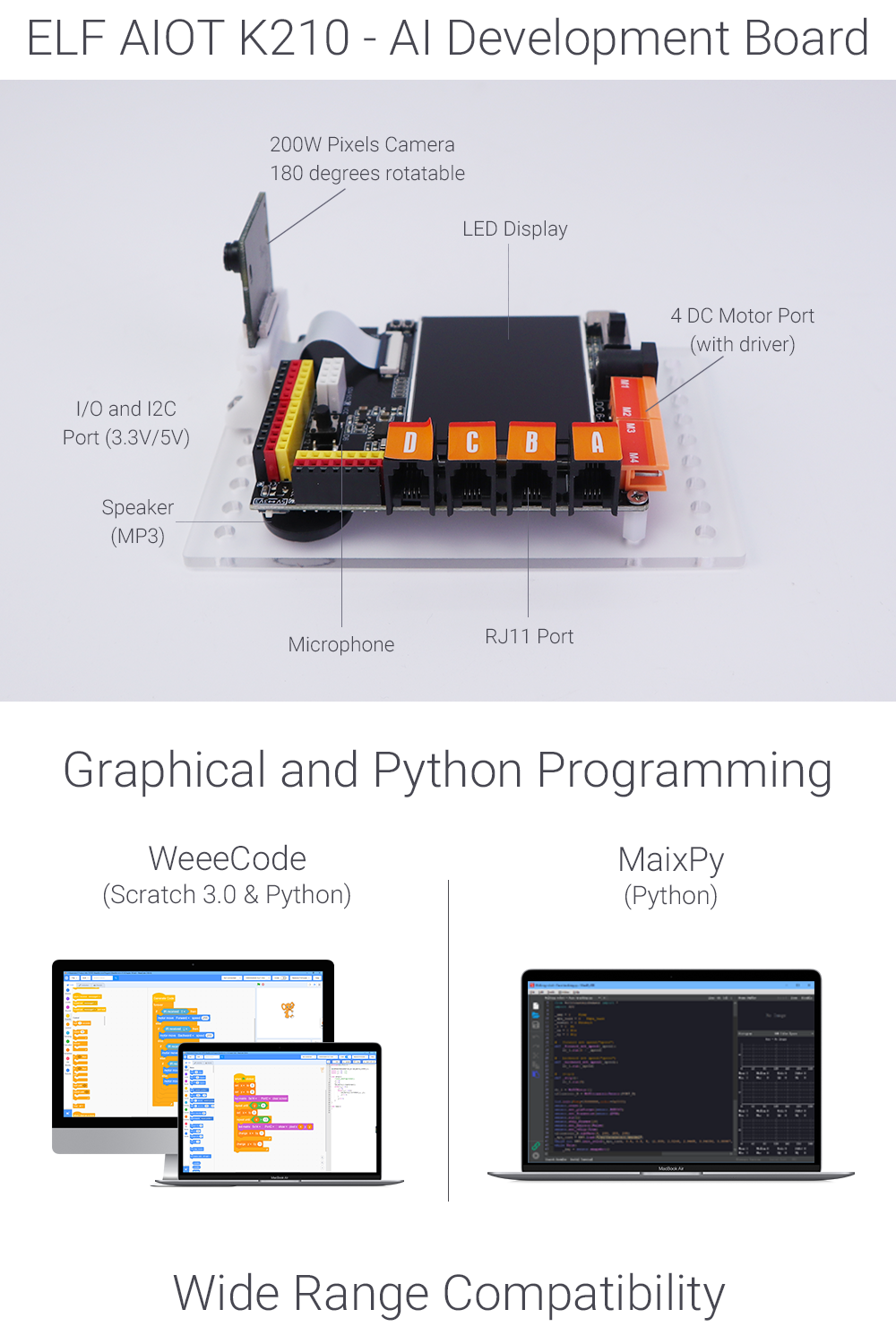

| Name | AI Factory Robot Kit | Mainboard | ELF AIOT K210 |
| Working Voltage | 6-12V | Curriculum | 8 Lessons |
| Onboard Electronics: | 1 x 2.4inch TFT Display | Wheel | 56T Plastic Gear |
| 1 x 180° Turnable 2MP Camera | Track Pack | ||
| 1 x Microphone | Motor | 25 DC Motor, MG995 Servo | |
| 1 x Speaker | Battery | 18650 Lithium Battery Pack | |
| 1 x On-board button | Software | WeeeCode (Scratch & microPython) | |
| 1 x Boot/Reset Button | MaixPy (microPython) | ||
| 1 x 3.3V/5V Toggle Switch | Package | Plastic box | |
| 1 x Power switch | Weight | ||
| Electronics | RJ11 Adapter Module | Size | 38 x 27 x 15 cm |
