AI Starter Kit

The AI Starter Kit is a preliminary entry-level kit that combines an artificial intelligence theme and a programming education theme developed for classroom teaching.

Quantity:



Inquire Add to Basket

Details

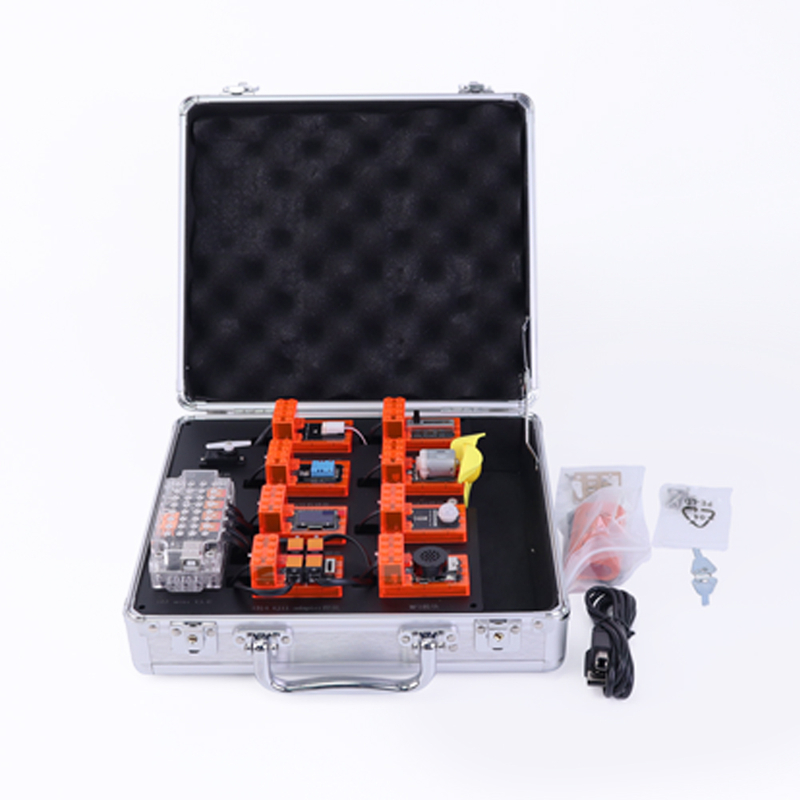

Weeemake AI Starter Kit is an entry-level kit for lower-grade primary school students. With suitcase package, easy to manage and working in classroom. Fully covered bracket mainboard and sensors, beautiful and convenient for use. An ideal kit to start AI education enlightenment.

ELF mini V3.0
WEEEMAKE ELF mini V3.0 is an integrated, compact design robot control board for STEM education. With rich onboard sensors, onboard charging circuit, RJ11 wiring port, transparent PC shell protection, there are Lego-compatible holes and M4 screws on it for easy installation.

Operation Voltage:	6-12V
MCU:	ATmega 328p or ESP32
Wiring Port:	4x RJ11 port
	2 x DC motor port
	1 x Wireless communication port (Bluetooth 2.4G)
	1x USB port (type B)
Onboard Electronics:	1x Sound sensor
	1x Light sensor
	1x IR Receiver
	2x Red LED
	2x Yellow LED
	4x Blue LED (Power Indicator)

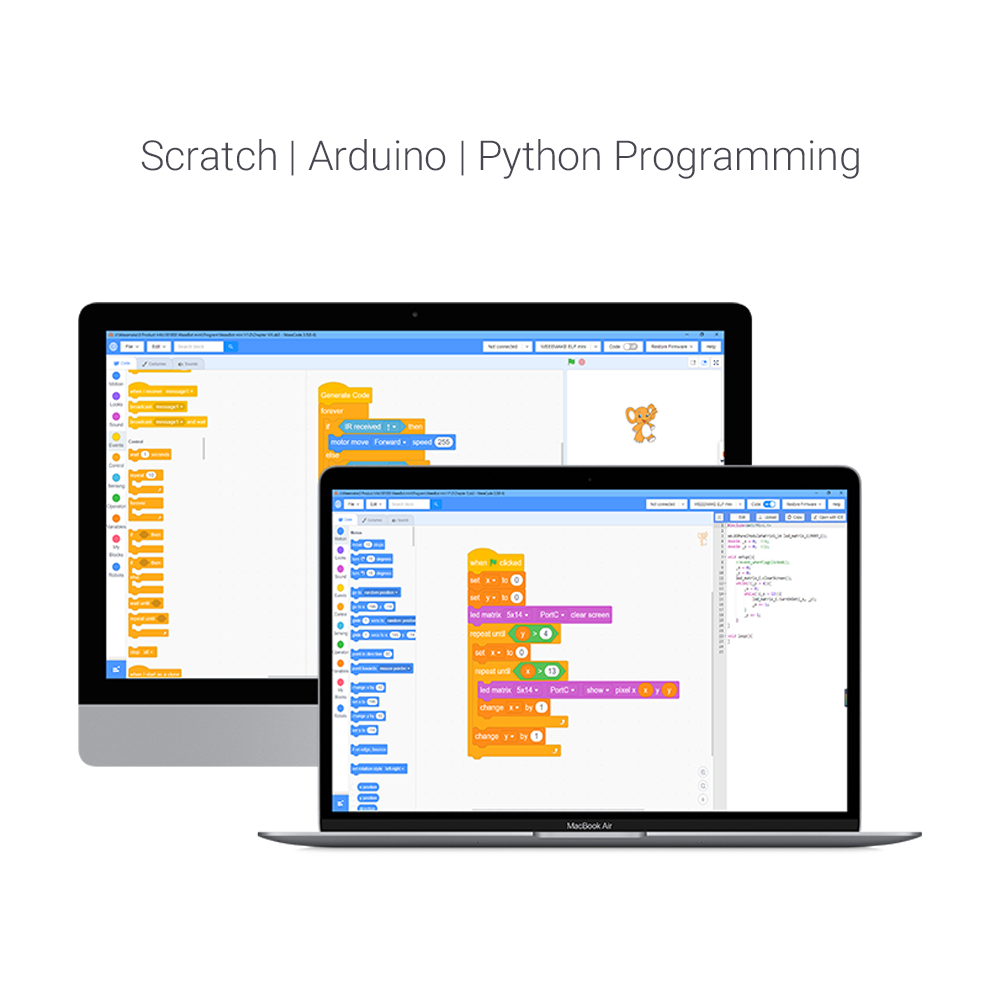

Software:	WeeeCode (Scratch 3.0), Arduino IDE

Curriculum

Chapter	No.	Lessons	Learning Hour	School Class
Chapter 1: Hello, Artificial Intelligence!	1	1. Artificial Intelligence from the Future	45 mins	1 lesson
	2	2. My AI assistant	45 mins	1 lesson
	3	3. My first line of code	45 mins	1 lesson
Chapter 2: Secret Programming Tool	4	1. Athletic master	45 mins	1 lesson
	5	2. AI, a good talker	45 mins	1 lesson
	6	3. To be tamed	45 mins	1 lesson
	7	4. Mathematical calculations	45 mins	1 lesson
	8	5. To be a detector	45 mins	1 lesson
	9	6. To be an artist	45 mins	1 lesson
Chapter 3: Combine AI with Sensor	10	1. Sound-control switch	45 mins	1 lesson
	11	2. Time reminder	45 mins	1 lesson
	12	3. Weather monitor	45 mins	1 lesson
	13	4. Anti-theft expert	45 mins	1 lesson
Chapter 4: Design A AI Assistant	14	1. Super broadcaster	45 mins	1 lesson
	15	2. AI family guard	45 mins	1 lesson
	16	3. A diverse AI assistant	45 mins	1 lesson

Parameter

SKU: 180023 AI Starter Kit

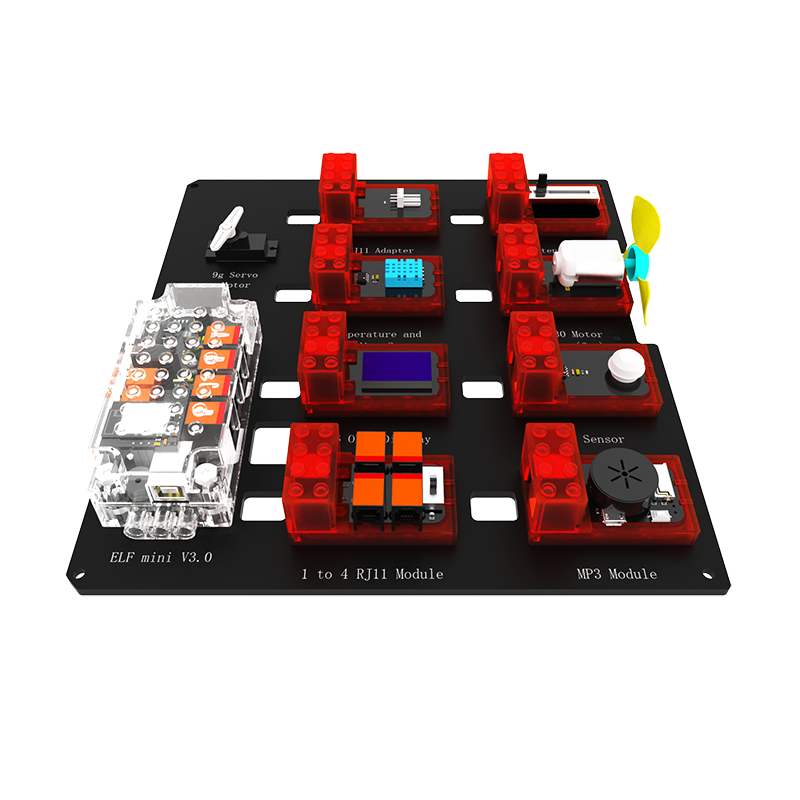

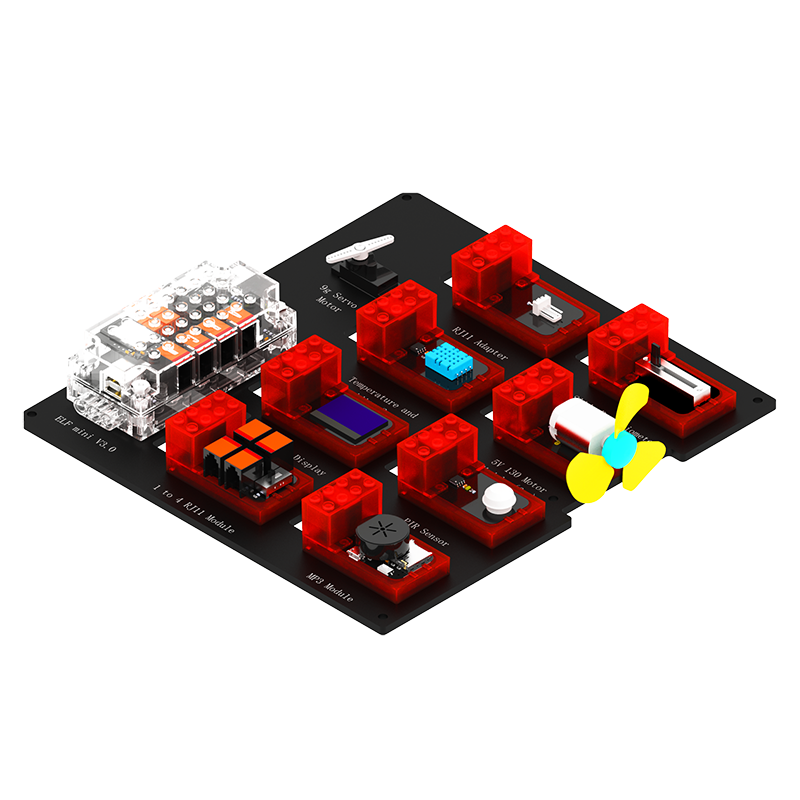

Mainboard:
ELF mini V3.0 (Atmega 328P)
Operating Voltage:
6-12V (18650 Lithium battery pack included)
On-board Sensor:
Light Sensor, Sound Sensor, IR, LED, Buzzer
External Sensor:
Temperature and humidity sensor; PIR sensor; 0.96 OLED display; 5V130 motor module (fan); MP3 module; Slide potentiometer; RJ11 adapter; 1 to 4 RJ11 Module
Motor:
9g Servo Pack
Communication:
Bluetooth, IR, 2.4G(optional)
Program Software:
WeeeCode (Scratch 3.0)
Arduino IDE
