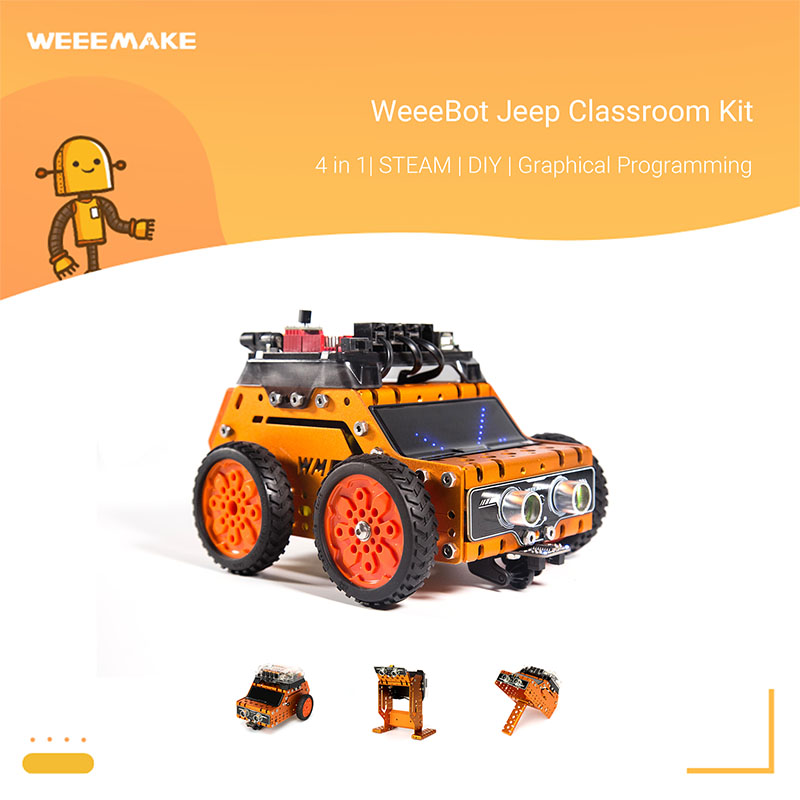

WeeeBot Jeep STEM Classroom Robot Kit

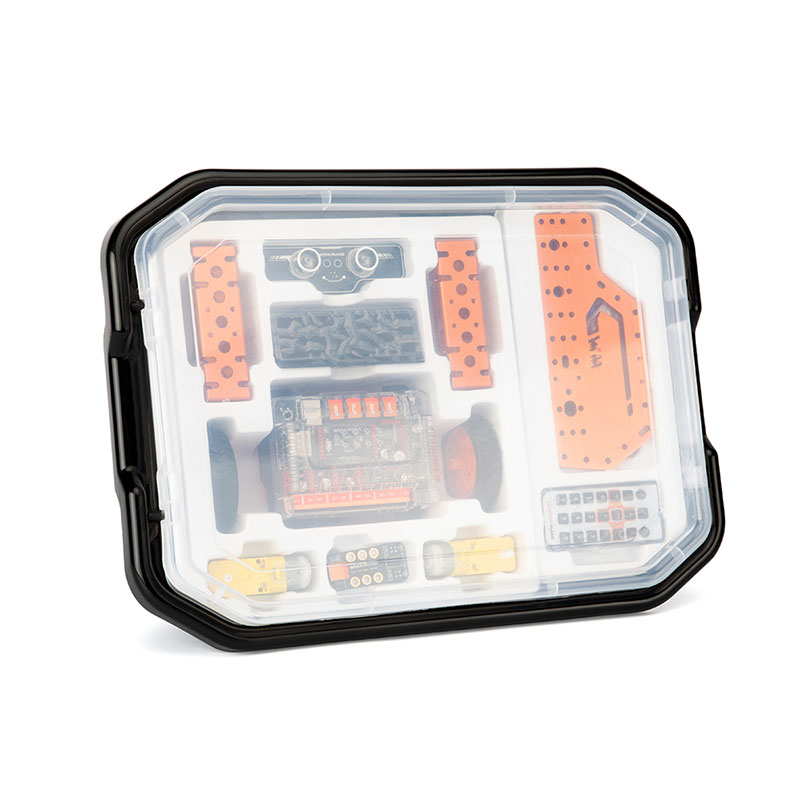

WeeeBot Jeep is an entry-level STEM education robot kit. With quick assembly experience and cool appearance, WeeeBot Jeep focus on helping age 8 + students to learn graphical programming and robot hands-on skills, to develop logical thinking ability and practical ability. The product is specially equipped with a plastic storage box that is suitable for classroom and project-based learning and with a set of 16-chapter Teacher’s Manual exclusive for teachers’ reference during teaching.

WeeeBot Jeep is easy to build, it comes with 30 types, 80 parts which can be assembled in 9 steps. Step by step graphical assembly guide and programming tutorial is offered.

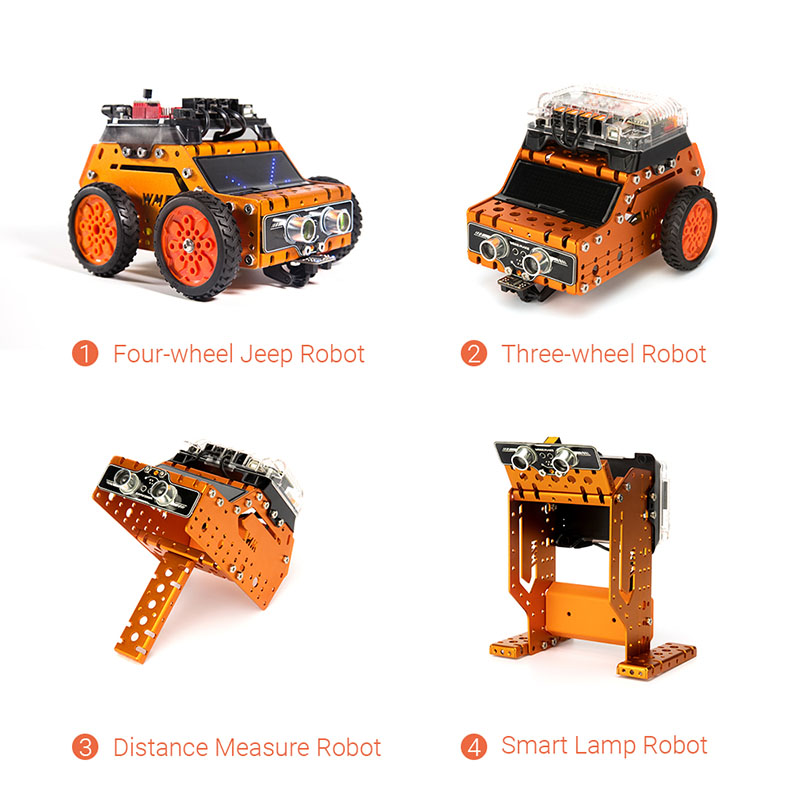

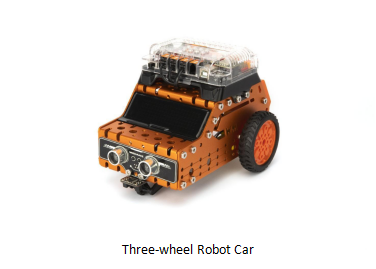

1.Three-wheel Robot Car

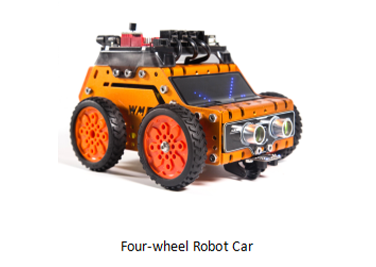

2.Four-wheel Robot Car

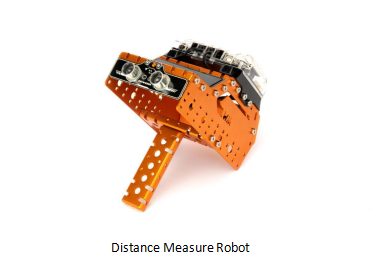

3.Distance Measure Robot

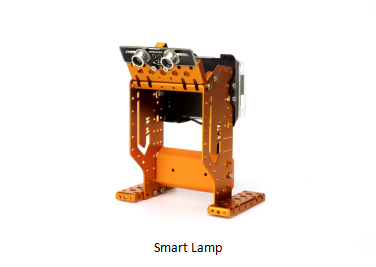

4.Smart Lamp
Robot Kit
Robot Kit
Robot Kit
Robot Kit
Enhanced Hands-on Ability
With heavy-duty mechanical parts, easy-to-use electronic modules like ELF mainboard, RGB ultrasonic sensor, Line-following sensor, light sensor, sound sensor, buzzer, RGB LED, IR receiver, Bluetooth module, you can get an enhanced hands-on experience on robot car that is programmable in wireless way.

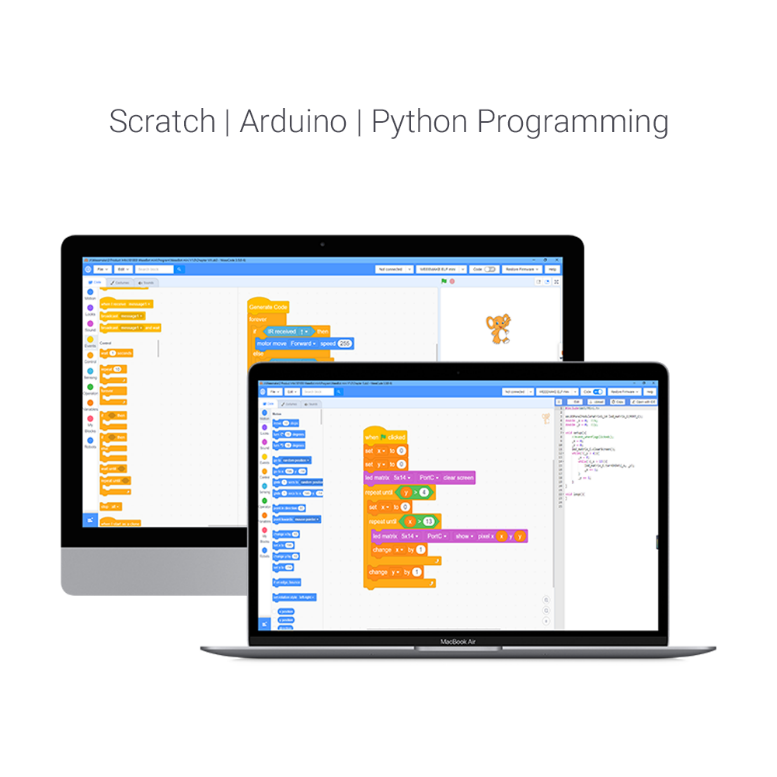

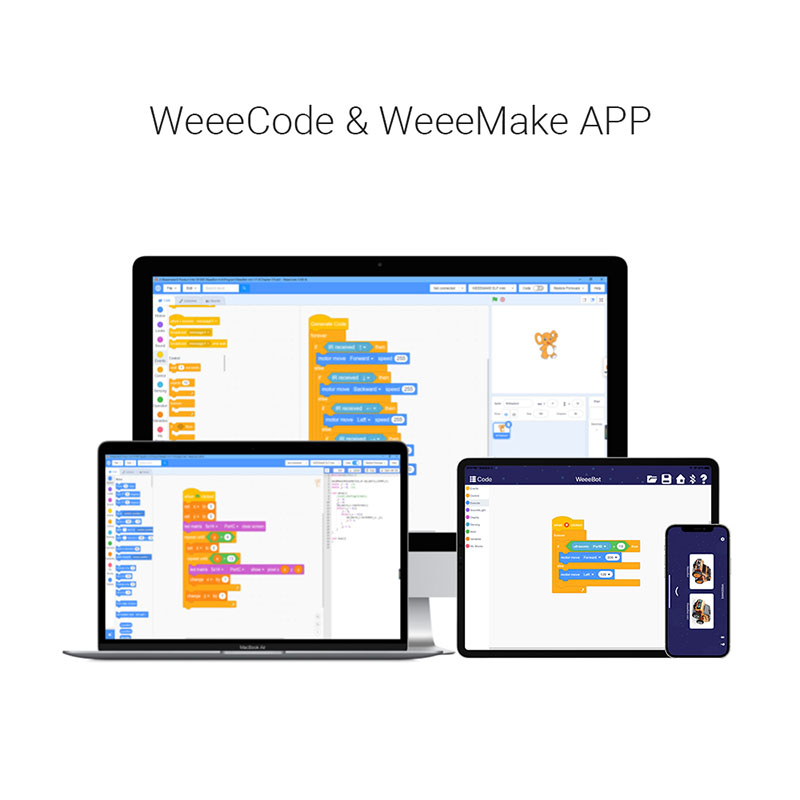

Easy but Powerful WeeeCode, Support Scratch & Arduino Programming
WeeeBot Jeep is fully compatible with WeeeCode which is a graphical programming environment based on Scratch 3.0 Open-Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks. Learning programming is way more fun when your code controls a robot. Based around an Arduino board, this kit will teach you all about programming a micro-controller board to control physical objects using sensors.
Robot Kit

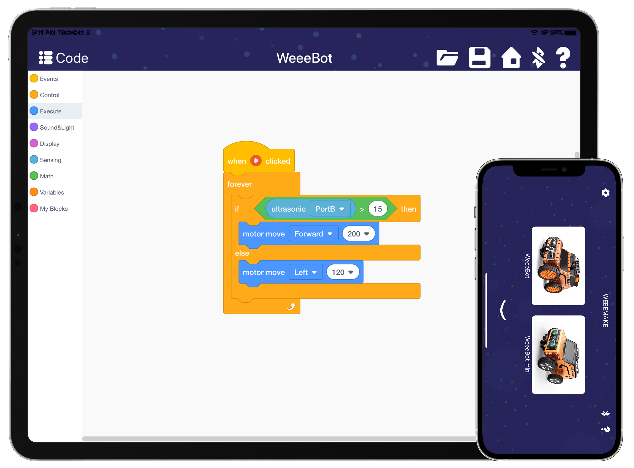

Control and Code by One Touch
WeeeMake APP is a control and program application designed for Weeemake robot. It provides six modes to play with your robot such as manual control, line-following, obstacle avoidance, music, voice control, and coding.
Robot Kit

Easy Wiring
Modules in this kit all equipped with RJ11 ports for easy wiring. Just by connecting the modules together, robots can be built in a quick way. All the wiring is simple and very clean.

16 Chapters, 36 Courses Lesson Plan
No. Name Learning Hour School Class
1 Walk into the World of Robots 90 mins 2 lesson
2 Colorful Neon Lights 90 mins 2 lesson
3 Little Performers 90 mins 2 lesson
4 Robot, run! 90 mins 2 lesson
5 Obedient Robots 90 mins 2 lesson
6 Pin-wall Games 180 mins 3 lesson
7 Dancing Robots 90 mins 2 lesson
8 Flying Elephant Games 180 mins 3 lesson
9 Little Pianist 90 mins 2 lesson
10 The secret of Sound and Light 90 mins 2 lesson
11 Intelligent Robot 90 mins 2 lesson
12 WeeeBot Line-following Robot 90 mins 2 lesson
13 My learning Partner 90 mins 2 lesson
14 Cool LED matrix 180 mins 3 lesson
15 Gluttonous Snake 180 mins 3 lesson
16 WeeeBot Robot Challenges 90 mins 2 lesson

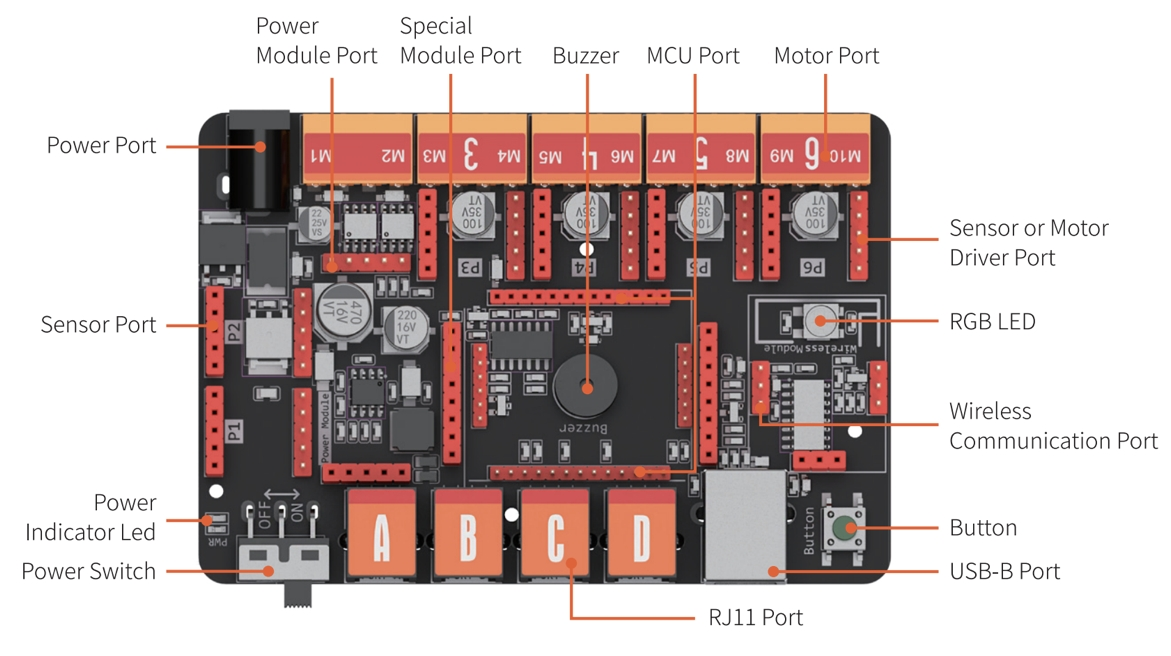

ELF Mainboard
WEEEMAKE ELF mainboard is designed on the basis of modular design style whose microchip is replaceable. This high-performance mainboard is designed for education.

1. Replaceable microchip: Support ATMEGA-328P, ESP32 chip, etc
2. Same port for motor driver and sensor pin port, easy to use.
3. Random wiring, work with WeeeCode and Arduino.
Robot Kit
Operation Voltage: 6-12V
Wiring Port: 1x MCU port (ATmega 328p or ESP32)
4x RJ11 port
2 x DC motor port
6 x pin conversion port (4 of which can be stepper/encoder/dc motor port)
1 x Wireless Communication port (Bluetooth 2.4G)
1x USB port (type B)
Onboard Electronics: 1x Buzzer
1x Button
Softare: WeeeCode (Scratch 3.0)
Arduino IDE

RGB Ultrasonic Sensor

The RGB ultrasonic sensor is an electronic module used to measure the distance with a measurement range of 4 cm to 500 cm. It can be used to help a car avoid obstacles or other projects related to ranging. The ultrasonic transmitter send ultrasonic wave in a certain direction and start counting time. The ultrasonic wave spreads in the air, and when the obstacle is encountered on the way, it returns immediately. The ultrasonic receiver immediately stops timing while receives the reflection wave. The transmission speed of the sound wave in the air is 340m/s. According to the time (T) recorded by the timer, the distance (S) between the transmitting point and obstacle is calculated, that is, S = 340*T/2.

At the same time, both ultrasonic probes has an built -in RGB LED light.
Robot Kit
Operating Voltage 5V DC
Detection Angle ≤30°
Detection Range 4-500 cm
Resolution 1cm
Ultrasonic Frequency 42kHz
Probe Angle 60°±15°
Size 100 x 32 x 30 mm
Wiring Port 4P4C RJ11
Communication 1-wire, built-in MCU

Double-way Line-following Sensor

The line-following sensor is using the feature of infrared that will get different reflection strength on the difference color surface. During the driving process of the robot car, the line-following sensor continued to transmit infrared light to the ground. When infrared light encountered a white surface, a long reflection occurred and the receiver on the sensor will receive those reflected infrared; When infrared light encountered a black surface, the infrared light is absorbed, and sensor’s receiver cannot receive infrared or receive very few. The position of the black or white line is determined by whether to receive the infrared light returned from the reflection or not.

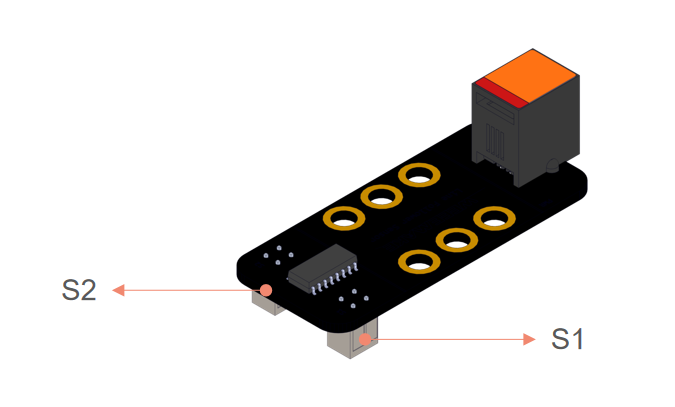

The double-way line-following sensor has two groups of infrared transmitter and receiver tube S1, S2.
Robot Kit
Operating Voltage DC 5V
Detection Range 1~2cm
Communication 1-wire
Peak Wavelength of Reflective Wave 940nm
Dimensions 55 x 24 x 18.5 mm
Wiring 4P4C RJ11

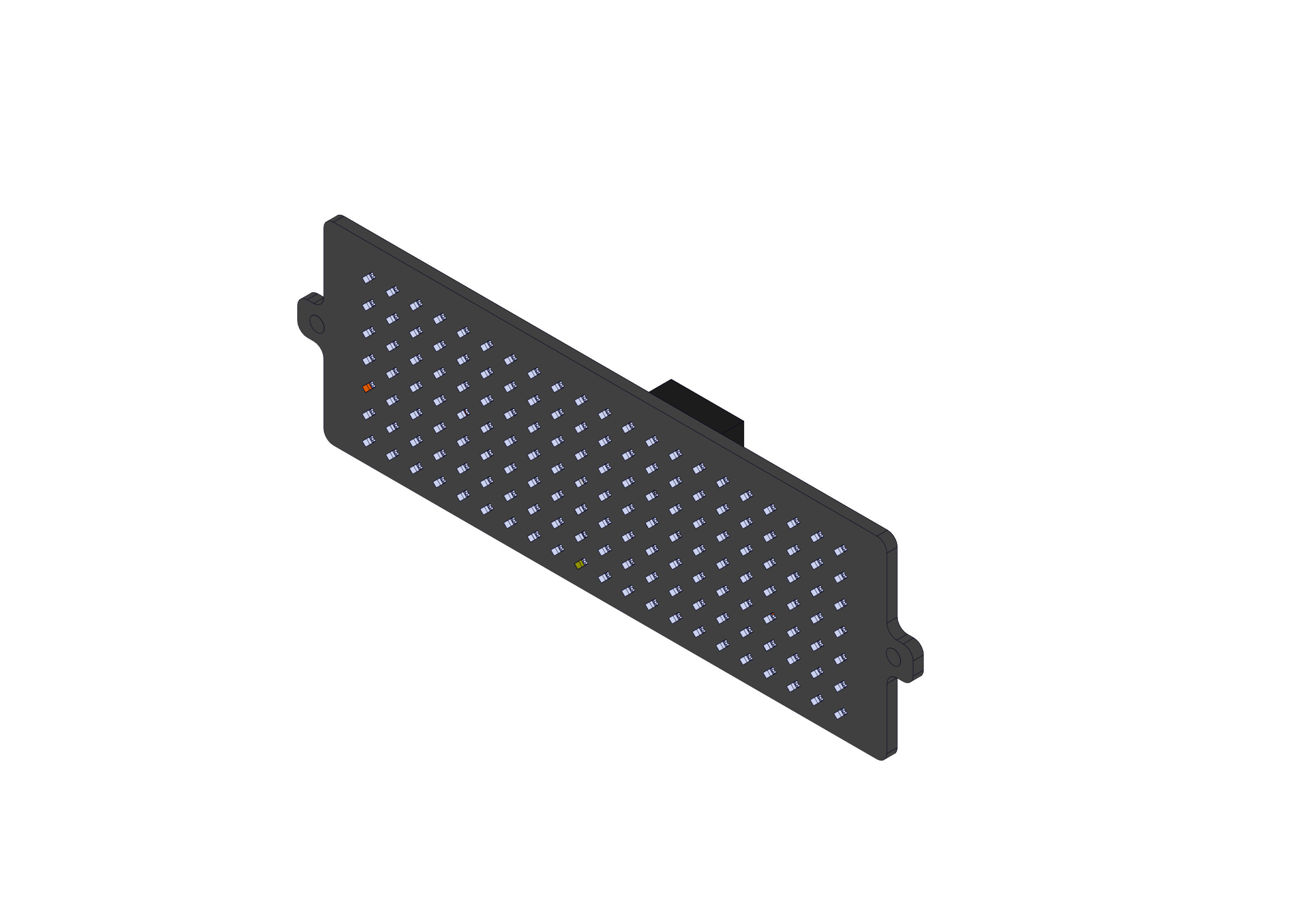

LED Matrix Panel

The LED panel matrix screen is composed of a blue LED light into a matrix, which can control display numbers, letters or symbols. The LED distribution is 5 rows multiple 7 columns. The sensor comes with a half-transparent black cover.

Robot KitRobot Kit
Operating Voltage DC 5V
Working Temperature 0 ~ 70℃
LED Color Blue
Matrix 7*21
Communication 1-wire
Dimensions 94 x 30.5 x 12 mm
Wiring 4P4C RJ11

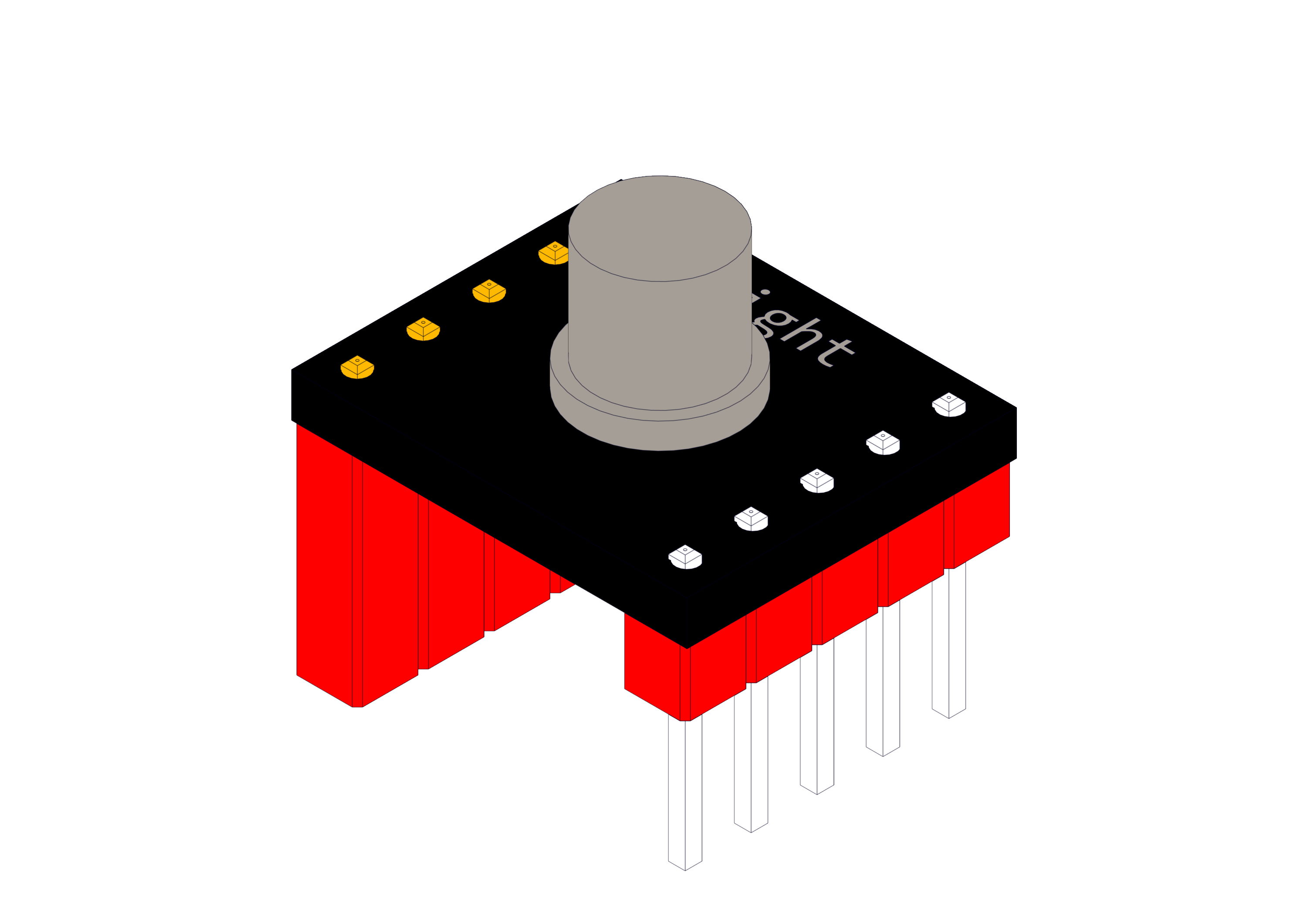

Light Sensor

Light sensor is a sensor based on the principle of optoelectronic effects of semiconductor (converting optical signals into electrical signals). It can detect the light intensity of the environment around the sensor, convert the strength of light into a electrical signal, and transmit it to the mainboard.
Robot Kit
Operating Voltage DC 5V
Output Signal Analog
Spectral Bandwidth 400nm-700nm
Operational Lag 15us
Return Value 0-1023
Dimensions 15 x 12.7x 16 mm
Wiring 5 Pin

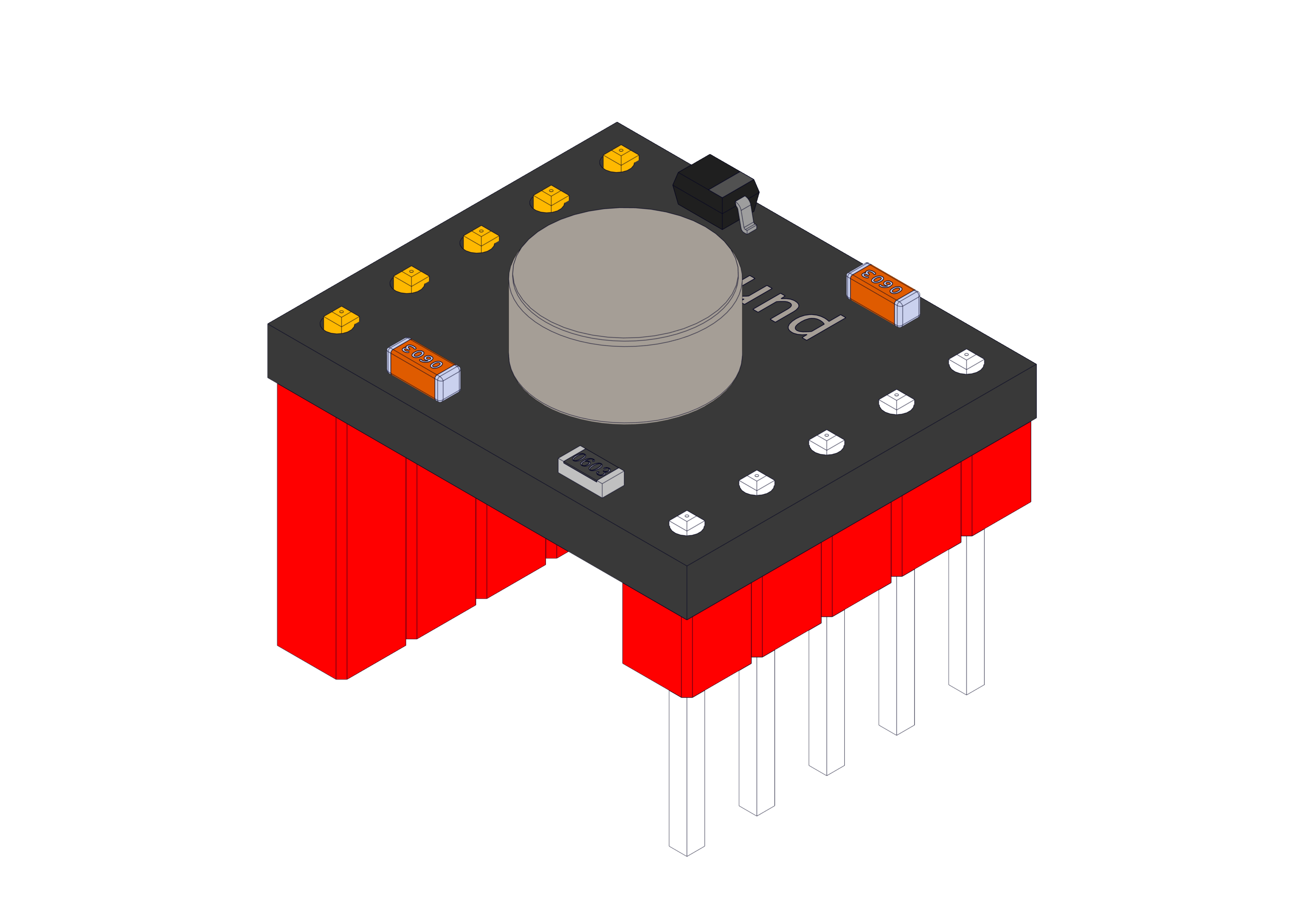

Sound Sensor

Sound Sensor converts the voice signal to electrical signal based on a microphone. It can be used to detect the sound intensity in the surrounding environment. The detected volume is enlarged by computing amplifier, and then transmitted to the mainboard. It can be used to do interactive projects, such as voice control switches, volume control robot car, etc.
Robot Kit
Operating Voltage DC 5V
Output Signal Analog
Microphone Sensitivity (1 khz) 52-56dB
Microphone Frequency 16-20Khz
Return Value 0-900
Dimensions 15 x 12.7x 16 mm
Wiring 5 Pin

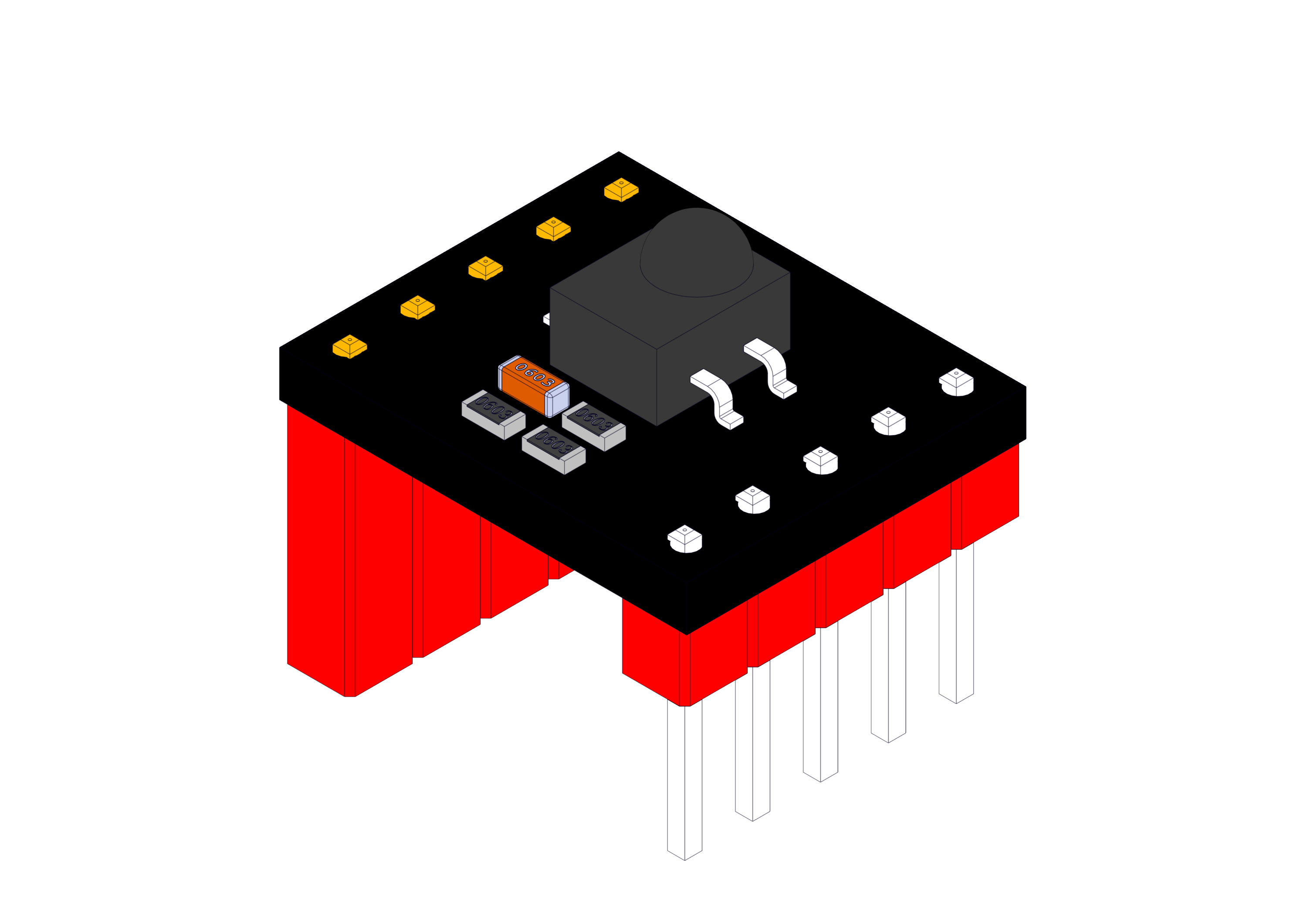

IR Receiver

The IR receiver has a component that can detect about 38kh IR signal, which can receive infrared signals emitted by IR remote control. IR remote control is currently using the most widely used communication and remote control methods, with the advantages of small size, low power consumption, and strong signal, etc.
Robot Kit
Operating Voltage DC 5V
Frequency 38KHZ
Peak Wavelength of Infrared 940 nm
Signal Receive Angle 90°
Working Distance 10 meters
Communication NEC
Dimensions 15 x 12.7x 16 mm
Wiring 5 Pin

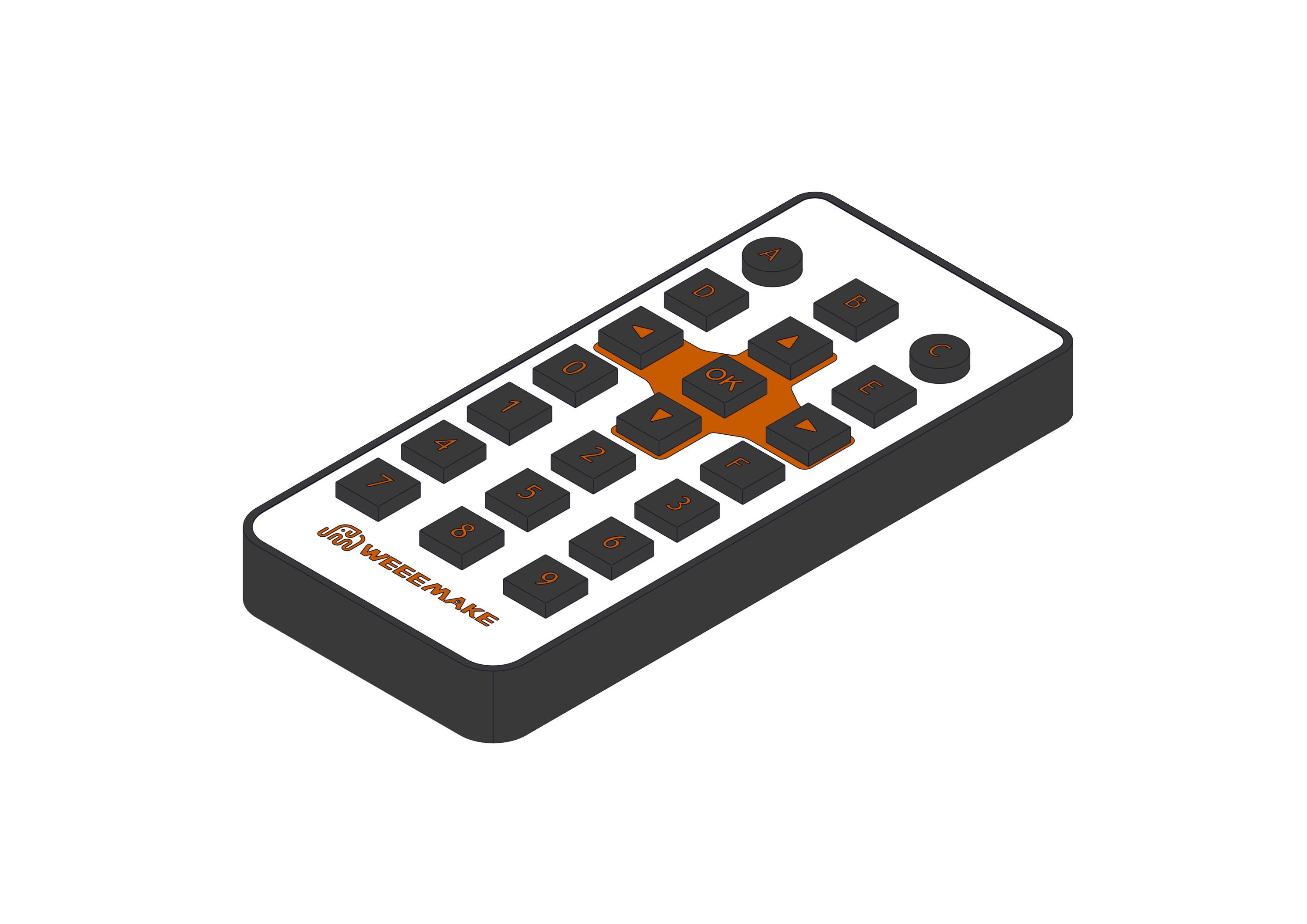

IR Remote Controller

IR remote controller is a common used remote control device. It has an IR transmitting light. When pressing the buttons on the remote control, a specific IR light signal will be emitted. This signal is received by the IR receiver and interpreted the signal.
Robot Kit
Operating Voltage DC 3V (Button cell CR2025, not included)
Frequency 38KHZ
Button Quantity 21
Signal Emit Angle 60°
Working Distance 8 meters
Communication NEC
Dimensions 90 x 41x 12 mm
Button Life 80000 times

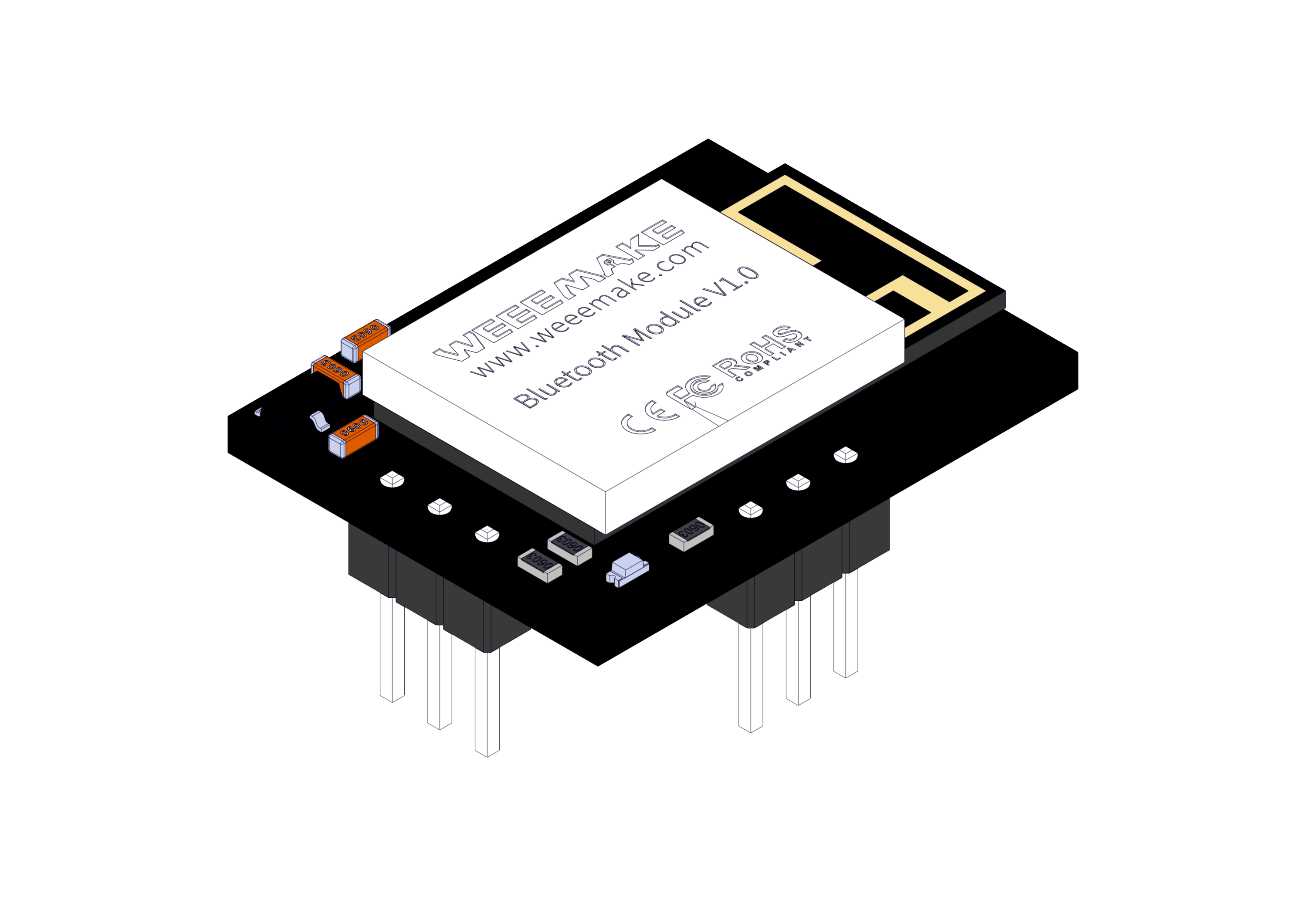

Bluetooth 4.1 Module

This Bluetooth module is designed for remote control. It can connect to the mobile phone Bluetooth, computer Bluetooth, Bluetooth dongle, etc. Not only can it be remotely controlled robots, but also wireless programming, download program, etc.
Robot Kit
Operating Voltage DC 5V
Bluetooth Mode BT4.1 (BLE)
Frequency 2.4GHz-2.48GHz
Transmission Max. 4dBm
Working Distance 20 meters (no barrier)
Communication UART
Dimensions 25.7 x 20.8 x 3.5 mm
Wiring Pin
Robot Kit
SKU: 161001
Mainboard: ELF
Sensor & Motor:
1 x RGB ultrasonic sensor
1 x Double-way line-following sensor
1 x 7*21 LED matrix panel module
2 x TT Motor (High-speed type)
1 x Light sensor
1 x Sound sensor
1 x IR reciver
1 x IR remote control
1 x Bluetooth 4.1 module
Item Parameter
Electronics RGB ultrasonic sensor, Double-way line-following sensor, 7x21 LED panel module, Light sensor, Sound sensor, IR receiver, buzzer, IR remote control, Bluetooth 4.1 module,
Mechanical Components Over 60 pcs
Controller ELF
Communication USB port, Bluetooth, 2.4G Wireless (Optional)
Motor drive 10 ways(M1-M10)
Sensor port 10 (4xRJ11, 6xoptional)
Motor 4
Robot Forms 12 forms are provided
Size 415 x 305 x 155 mm
Weight 2020 g
