Metal Robot Gripper

Name: Metal Robot Gripper
Rating: 5.0 (58 reviews)

Weeemake metal robot gripper is made of anodized aluminum and servo motor. A robot gripper is a type of robot end effector, which is a device that is attached to the end of a robot's arm and is used to interact with the environment. It is typically designed to grip and manipulate objects. The gripper is made of aluminum, which is a strong and lightweight metal that is commonly used in robotics due to its durability and resistance to corrosion. The gripper works by using a series of internal mechanical components, such as motors, gears, and levers, to open and close its fingers in order to grip and release objects.

Quantity:



Inquire Add to Basket

Details

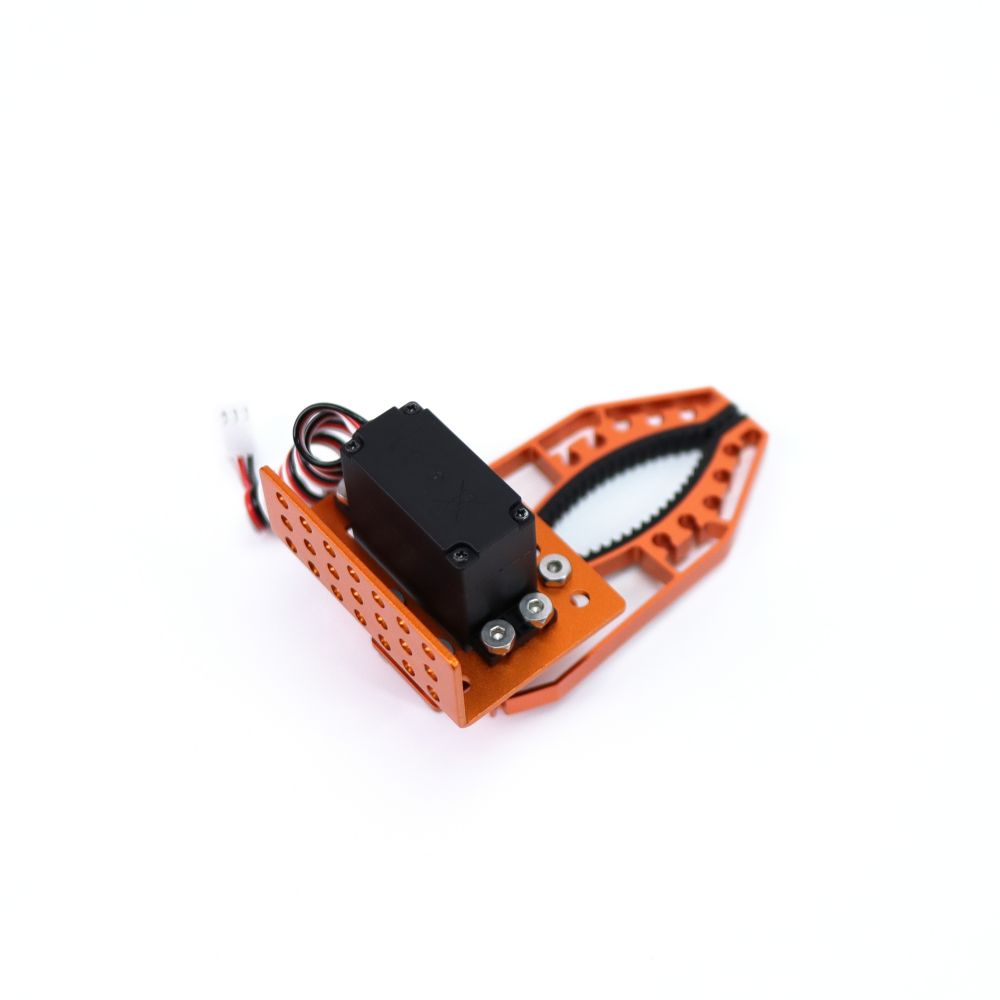

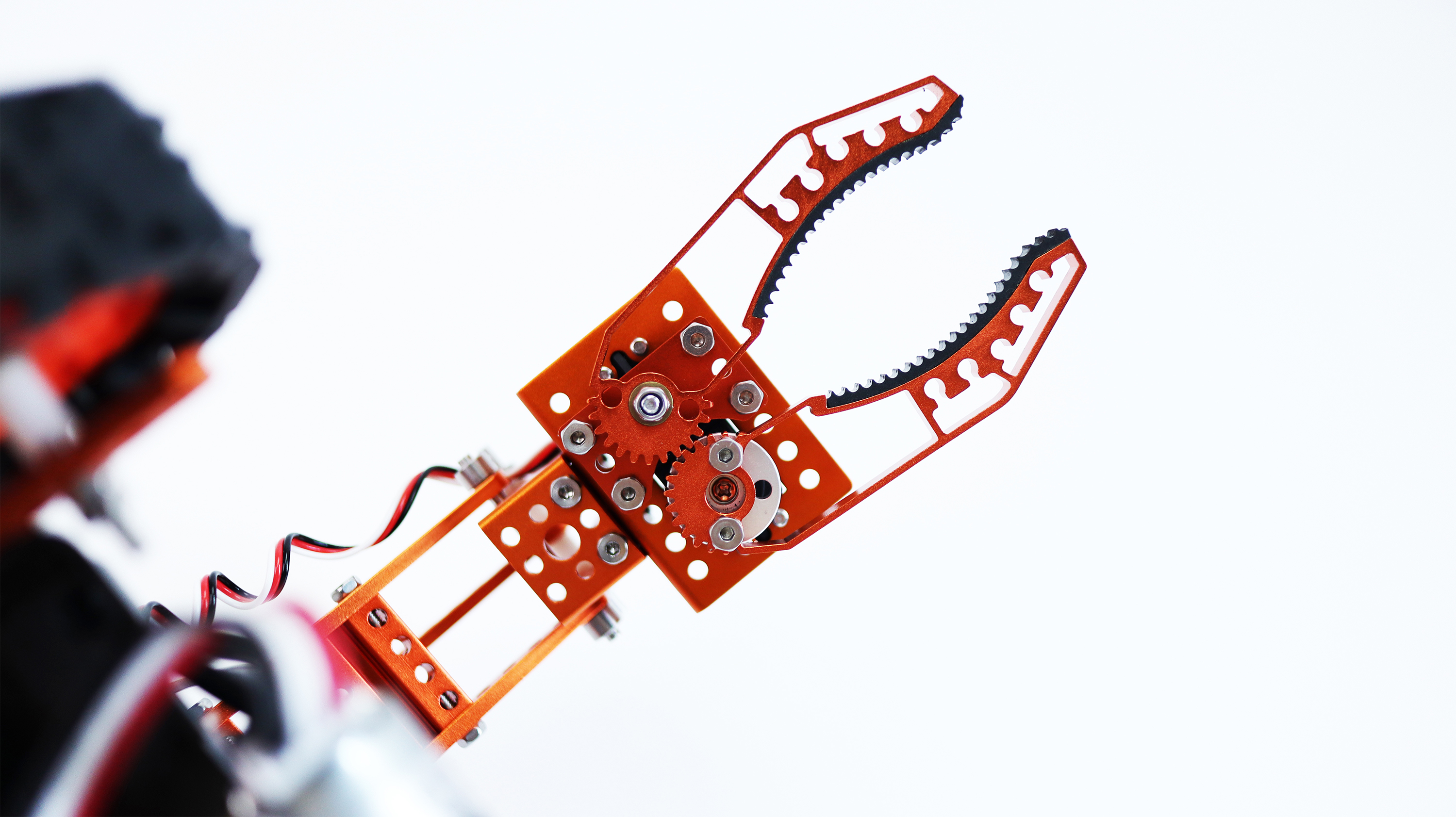

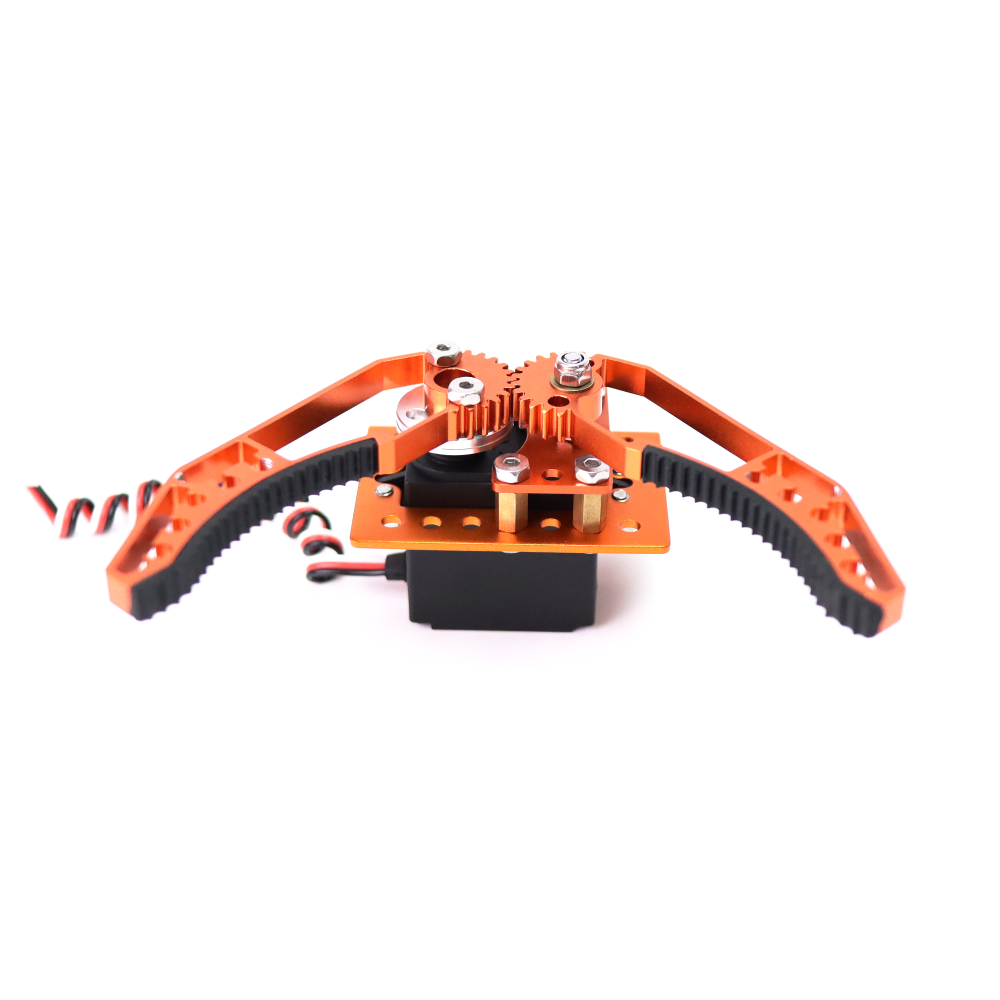

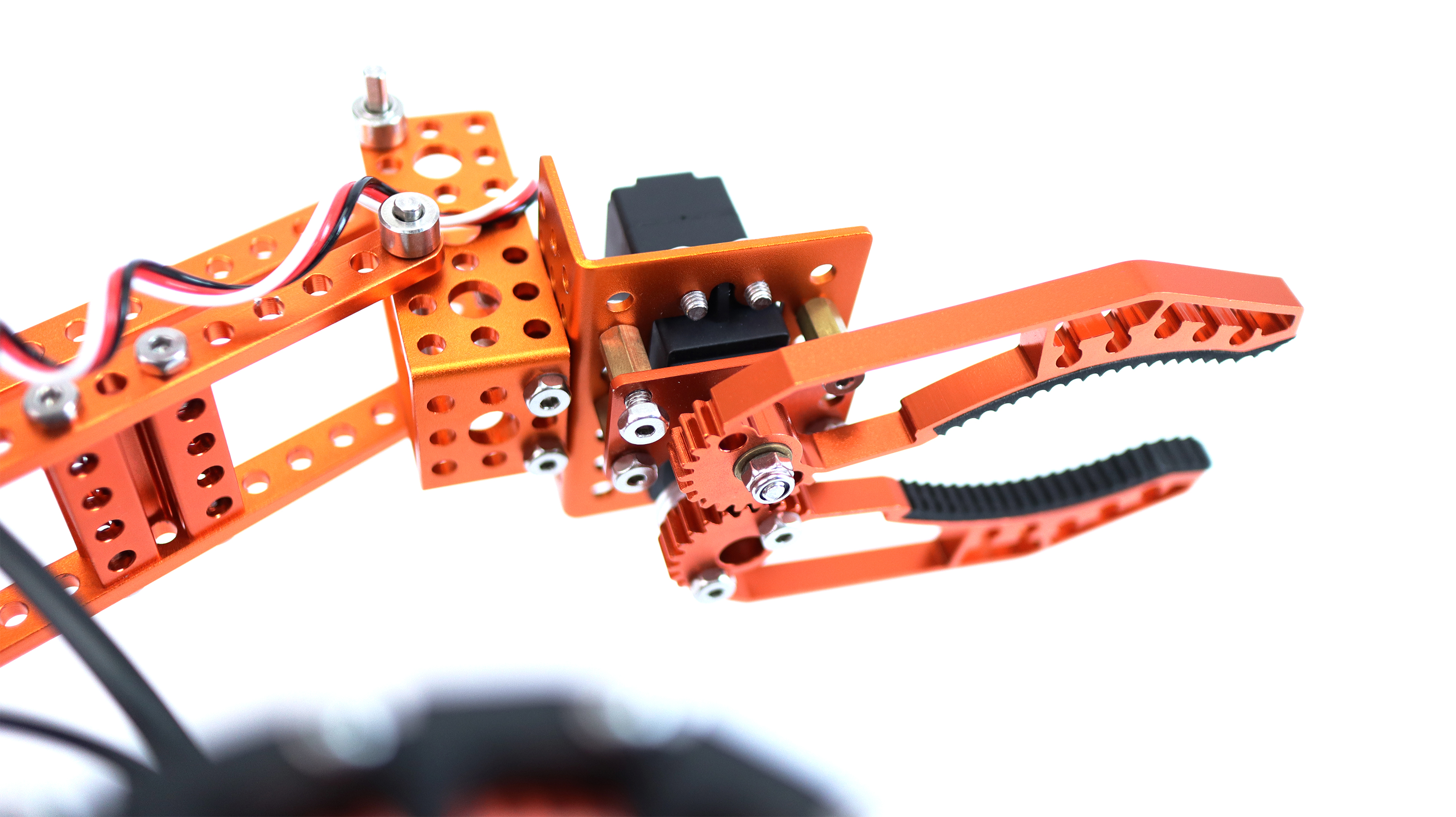

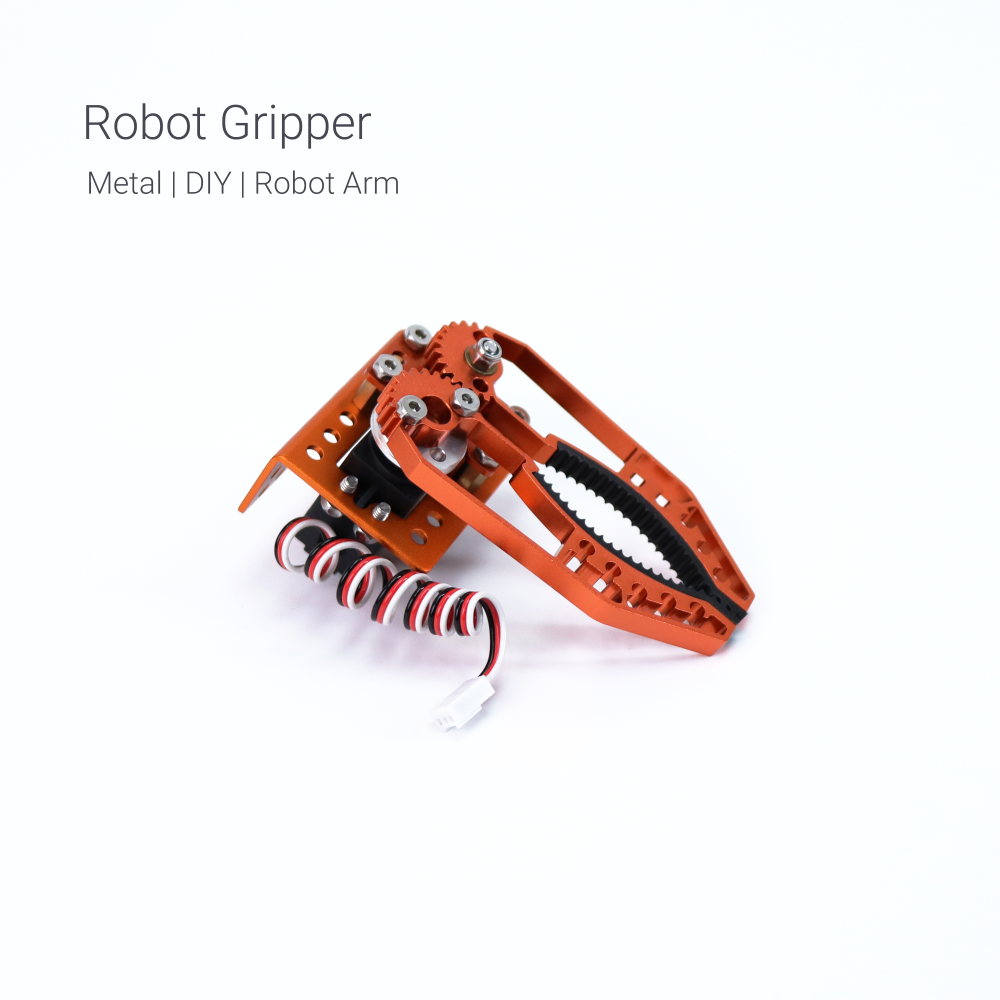

Weeemake Metal Robot Gripper V2.0

The Weeemake Robot Gripper V2.0 is a DIY metal robot gripper set that is designed to be used with MG995 or R003C servo motors. The set includes all the necessary parts to assemble a robotic gripper, including the metal frame, servo motor, and other hardware. The gripper is intended for use in DIY robotics projects and can be used to grip and manipulate objects. The V2.0 version of the gripper has been updated with a stronger and more durable design, making it suitable for a wider range of applications.

Compatible with a wide range of open-source DIY educational robot kits and robot arm kits, including Weeemake, Arduino, Raspberry Pi, and micro:bit. This compatibility means that the gripper can be easily integrated into a variety of robotics projects, allowing users to build their own custom robotic solutions.

The gripper is designed to be easy to use and can be controlled using standard servo motor commands, making it a versatile and flexible tool for DIY robotics enthusiasts.

Video

Parameter

SKU: 110692

Product Name: Metal Robot Gripper (30 kg.cm)
1. Working voltage: 6-8.4V DC
2. Stall torque: 30 kg.cm
3. Motor: R003C
4. Material: Anodized aluminum
5. Max. grip size: 100mm
6. Size: 11.5x6.4.x5.3 cm
7. Communication: PWM
8. Pulse Width Range: 500~2500us
9. Net Weight: 161g

SKU: 110693

Product Name: Metal Robot Gripper (13.5 kg.cm)
1. Working voltage: 4.8-7.4V DC
2. Peak stall torque: 13.5-15.2 kg.cm
3. Motor: MG995
4. Material: Anodized aluminum
5. Max. grip size: 100mm
6. Size: 11.5x6.4.x5.3 cm
7. Communication: PWM
8. Pulse Width Range: 500~2500us
9. Net Weight 151g
