6 in 1 WeeeBot Evolution Robot Kit
The 6 in 1 WeeeBot Evolution Robot Kit is a STEM construction robot kit with six cool pre-set forms. It consists of powerful mainboard ELF, anodized aluminum mechanics, and smart modular electronics system. Evolution involved, building robots from the animal, to human, to robot machine times! Building process and learning programming with WeeeCode are fun and easy. Supports APP control and code, graphical programming, Arduino and Python programming.
Details
Parameter
The 6-in-1 Evolution Robot Kit is a versatile DIY advance STEAM educational kits, which contains 50 + components and electronic modules. It can realize APP controlling, graphical programming controlling, Arduino and Python code controlling on mobile and PC terminals. It consists of 6 classic forms, to enable learners to improve robotic assembly skills and programming process abilities by exploring six classic cases in the suite.
Enhanced Hands-on Ability
With heavy-duty mechanical parts, easy-to-use electronic modules like ELF, RGB ultrasonic sensor, Line-following sensor, IR receiver, Bluetooth module, you can get an enhanced hands-on experience on six robot forms that is programmable in wireless way.

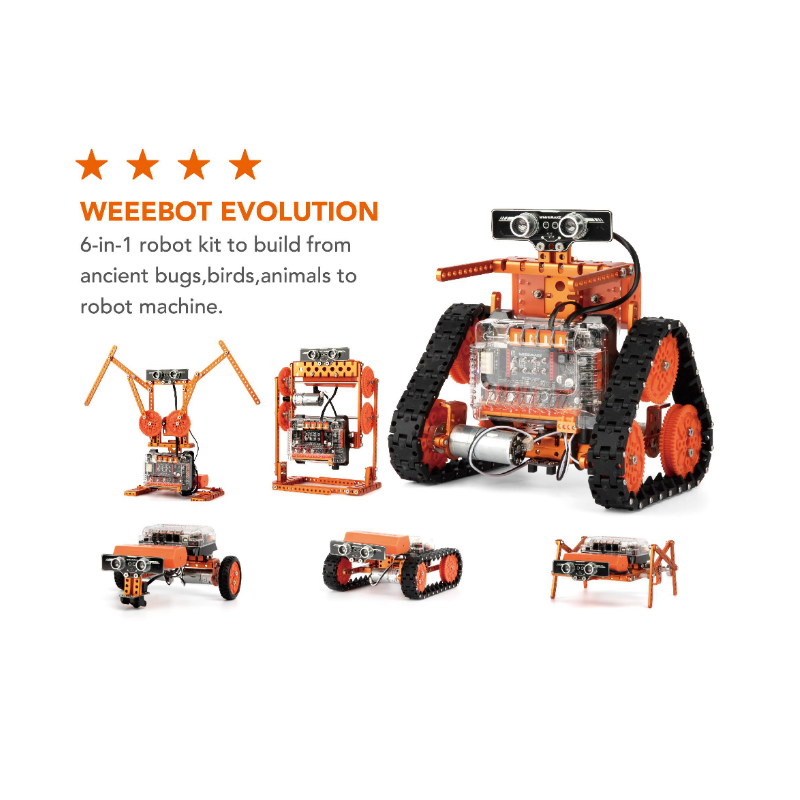

Evolutionary Building Forms

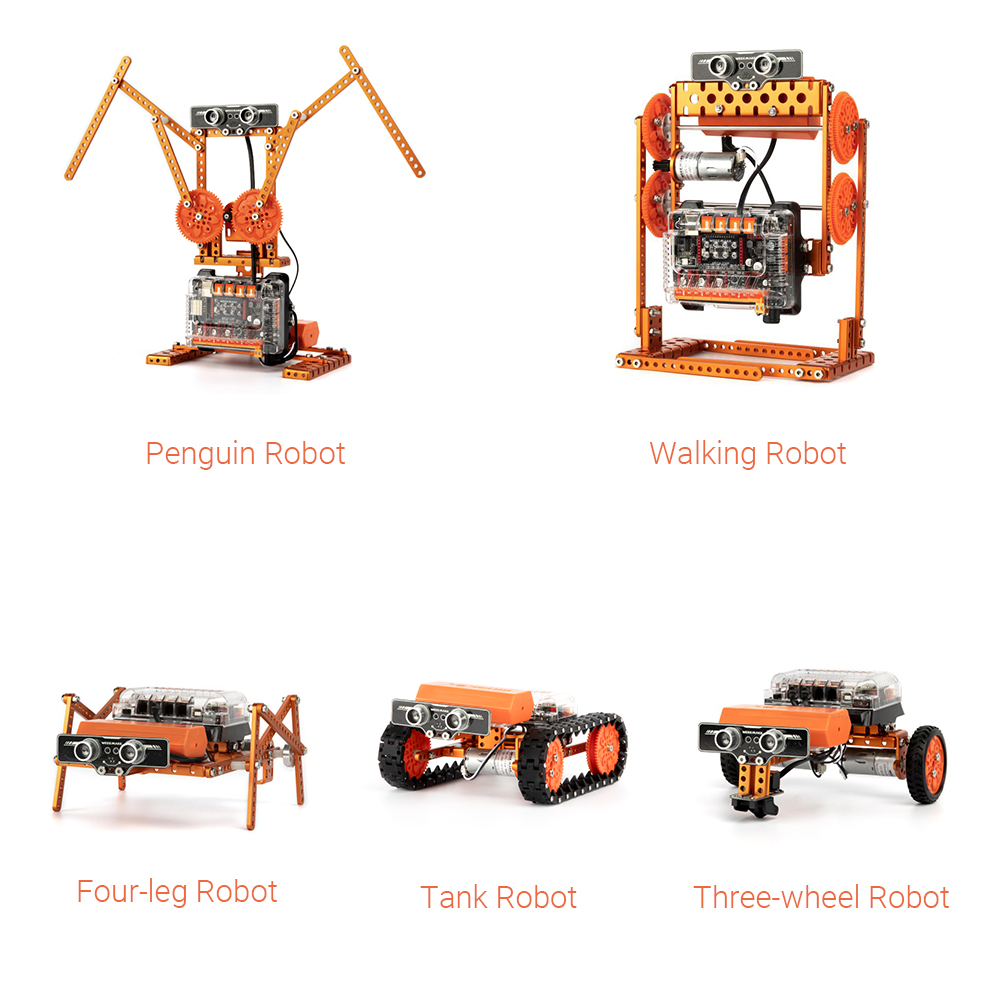

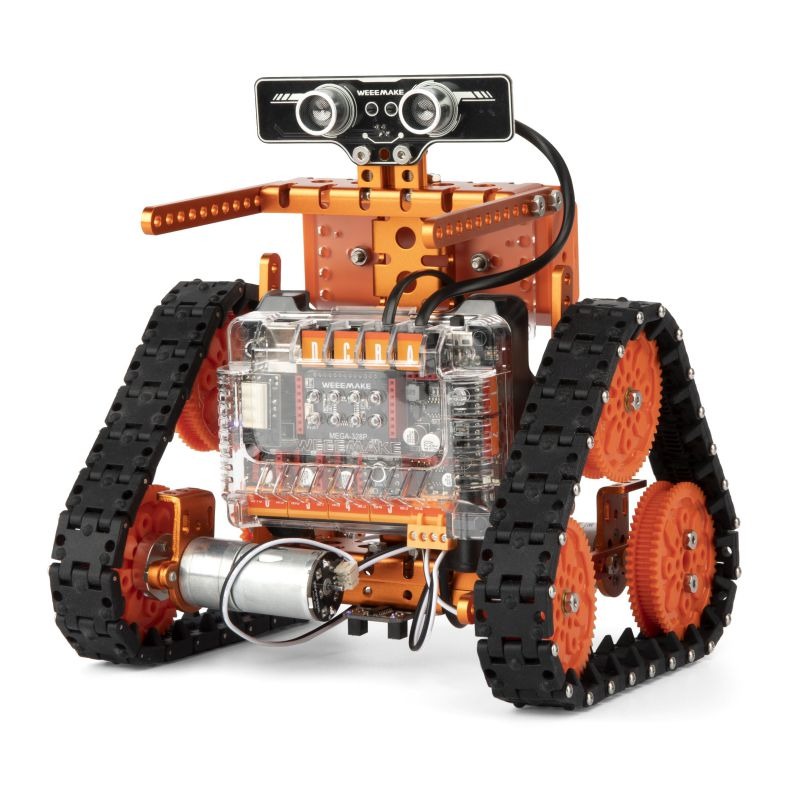

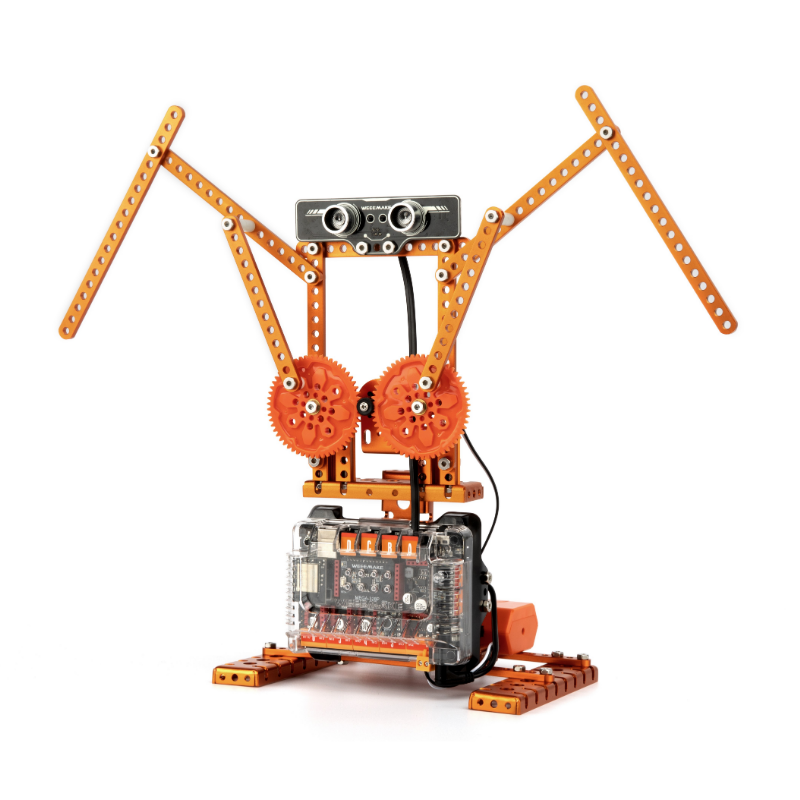

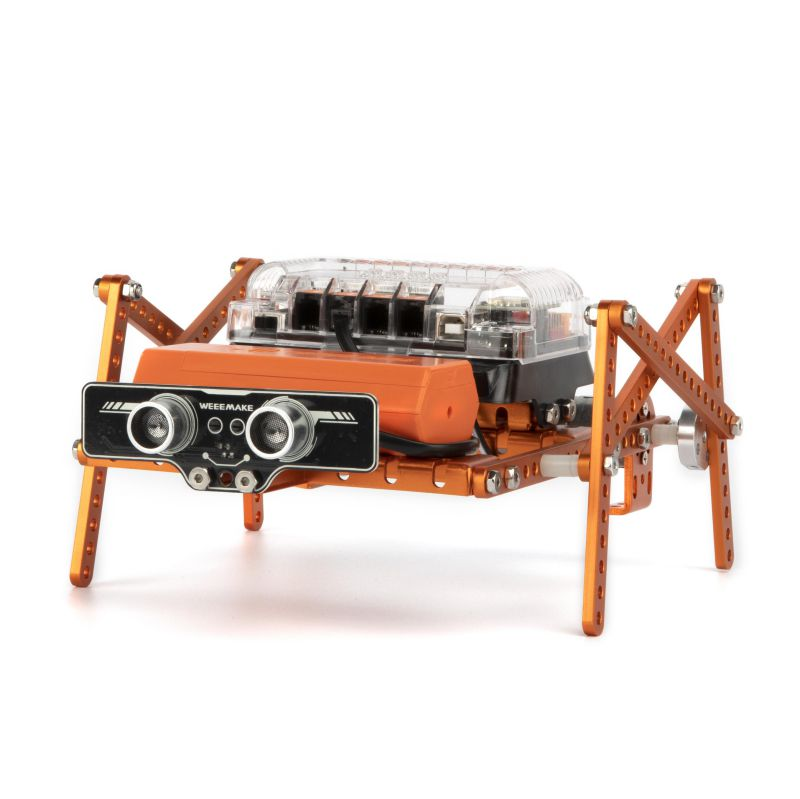

Wall-E Robot., Four leg robot, Robot Penguin, Walking Robot, Three Wheel Car, Detection Robot..png)
.png)
.png)
.png)
.png)
Easy but Powerful WeeeCode, Support Scratch & Arduino Programming
WeeeBot Evolution is fully compatible with WeeeCode which is a graphical programming environment based on Scratch 3.0 Open-Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks.
Learning programming is way more fun when your code controls a robot. Based around an Arduino board, this kit will teach you all about programming a micro-controller board to control physical objects using sensors.
Control and Code by One Touch
WeeeMake APP is a control and program application designed for Weeemake robot. It provides six modes to play with your robot such as manual control, line-following, obstacle avoidance, music, voice control, and coding.
Easy Wiring
Modules in this kit all equipped with RJ11 ports for easy wiring. Just by connecting the modules together, robots can be built in a really quick way. All the wiring is simple and very clean.
ELF Mainboard
WEEEMAKE ELF mainboard is designed on the basis of modular design style whose microchip is replaceable. This high-performance mainboard is designed for education.
1. Replaceable microchip: Support ATMEGA-328P, ESP32 chip, etc
2. Same port for motor driver and sensor pin port, easy to use.
3. Random wiring, work with WeeeCode and Arduino.
RGB Ultrasonic Sensor
The RGB ultrasonic sensor is an electronic module used to measure the distance with a measurement range of 4 cm to 500 cm. It can be used to help a car avoid obstacles or other projects related to ranging. The ultrasonic transmitter send ultrasonic wave in a certain direction and start counting time. The ultrasonic wave spreads in the air, and when the obstacle is encountered on the way, it returns immediately. The ultrasonic receiver immediately stops timing while receives the reflection wave. The transmission speed of the sound wave in the air is 340m/s. According to the time (T) recorded by the timer, the distance (S) between the transmitting point and obstacle is calculated, that is, S = 340*T/2.
At the same time, both ultrasonic probes has an built -in RGB LED light.
Double-way Line-following Sensor
The line-following sensor is using the feature of infrared that will get different reflection strength on the difference color surface. During the driving process of the robot car, the line-following sensor continued to transmit infrared light to the ground. When infrared light encountered a white surface, a long reflection occurred and the receiver on the sensor will receive those reflected infrared; When infrared light encountered a black surface, the infrared light is absorbed, and sensor’s receiver cannot receive infrared or receive very few. The position of the black or white line is determined by whether to receive the infrared light returned from the reflection or not.
The double-way line-following sensor has two groups of infrared transmitter and receiver tube S1, S2.
Enhanced Hands-on Ability
With heavy-duty mechanical parts, easy-to-use electronic modules like ELF, RGB ultrasonic sensor, Line-following sensor, IR receiver, Bluetooth module, you can get an enhanced hands-on experience on six robot forms that is programmable in wireless way.
.png)
Evolutionary Building Forms

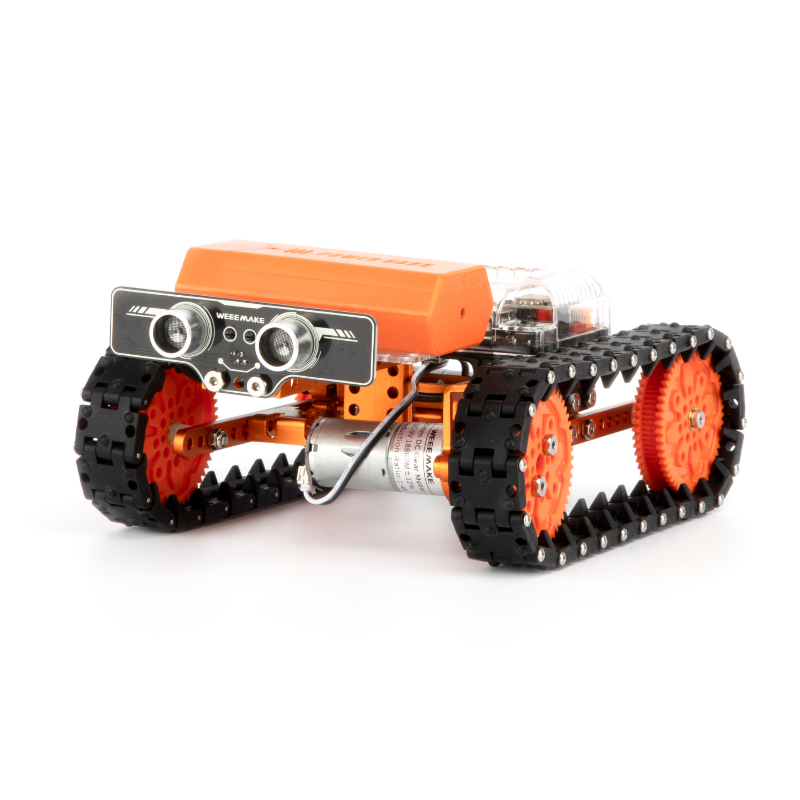

Wall-E Robot., Four leg robot, Robot Penguin, Walking Robot, Three Wheel Car, Detection Robot.
.png)
.png)
.png)
.png)
.png)
.png)
Easy but Powerful WeeeCode, Support Scratch & Arduino Programming
WeeeBot Evolution is fully compatible with WeeeCode which is a graphical programming environment based on Scratch 3.0 Open-Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks.
Learning programming is way more fun when your code controls a robot. Based around an Arduino board, this kit will teach you all about programming a micro-controller board to control physical objects using sensors.
.png)
Control and Code by One Touch
WeeeMake APP is a control and program application designed for Weeemake robot. It provides six modes to play with your robot such as manual control, line-following, obstacle avoidance, music, voice control, and coding.
.png)
Easy Wiring
Modules in this kit all equipped with RJ11 ports for easy wiring. Just by connecting the modules together, robots can be built in a really quick way. All the wiring is simple and very clean.
ELF Mainboard
WEEEMAKE ELF mainboard is designed on the basis of modular design style whose microchip is replaceable. This high-performance mainboard is designed for education.
1. Replaceable microchip: Support ATMEGA-328P, ESP32 chip, etc
2. Same port for motor driver and sensor pin port, easy to use.
3. Random wiring, work with WeeeCode and Arduino.
.png)
Operation Voltage: | 6-12V |
Wiring Port: | 1x MCU port (ATmega 328p or ESP32) |
4x RJ11 port | |
2 x DC motor port | |
6 x pin conversion port (4 of which can be stepper/encoder/dc motor port) | |
1 x Wireless Communication port (Bluetooth 2.4G) | |
1x USB port (type B) | |
Onboard Electronics: | 1x Buzzer |
1x Button | |
1x RGB LED | |
Softare: | WeeeCode (Scratch 3.0) |
Arduino IDE |
RGB Ultrasonic Sensor
The RGB ultrasonic sensor is an electronic module used to measure the distance with a measurement range of 4 cm to 500 cm. It can be used to help a car avoid obstacles or other projects related to ranging. The ultrasonic transmitter send ultrasonic wave in a certain direction and start counting time. The ultrasonic wave spreads in the air, and when the obstacle is encountered on the way, it returns immediately. The ultrasonic receiver immediately stops timing while receives the reflection wave. The transmission speed of the sound wave in the air is 340m/s. According to the time (T) recorded by the timer, the distance (S) between the transmitting point and obstacle is calculated, that is, S = 340*T/2.
At the same time, both ultrasonic probes has an built -in RGB LED light.
.png)
Operating Voltage | 5V DC |
Detection Angle | ≤30° |
Detection Range | 4-500 cm |
Resolution | 1cm |
Ultrasonic Frequency | 42kHz |
Probe Angle | 60°±15° |
RGB LED | 2 |
Size | 100 x 32 x 30 mm |
Wiring Port | 4P4C RJ11 |
Communication | 1-wire, built-in MCU |
Double-way Line-following Sensor
The line-following sensor is using the feature of infrared that will get different reflection strength on the difference color surface. During the driving process of the robot car, the line-following sensor continued to transmit infrared light to the ground. When infrared light encountered a white surface, a long reflection occurred and the receiver on the sensor will receive those reflected infrared; When infrared light encountered a black surface, the infrared light is absorbed, and sensor’s receiver cannot receive infrared or receive very few. The position of the black or white line is determined by whether to receive the infrared light returned from the reflection or not.
The double-way line-following sensor has two groups of infrared transmitter and receiver tube S1, S2.
.png)
Operating Voltage | DC 5V |
Detection Range | 1~2cm |
Communication | 1-wire |
Peak Wavelength of Reflective Wave | 940nm |
Dimensions | 55 x 24 x 18.5 mm |
Wiring | 4P4C RJ11 |
SKU: 181017
Description | 6-in-1 WeeeBot Evolution Robot Kit | Pre-set forms | 6 |
Mainboard | ELF | User | 10 + |
On-board Electronics | ATmega328P | Motor | 2 × 188rpm DC geared Motor |
1 × Light sensor | External electronic modules | RGB ultrasonic sensor | |
1 × Sound sensor | Double-way line-following sensor | ||
1 × IR transmitter & receiver | Variety and quantity of parts | Parts variety:55 + | |
1 × Buzzer | parts quantity: 380+ | ||
1 × On-board button | Operation voltage | 6-12V | |
1 × On-board RGB LED | Power supply | 18650 lithium battery × 2 | |
Extension port | 4 × RJ11 port, 2 × DC motor port, 4 × Versatile motor port | Programming software | APP (graphical programming) PC (graphic + Arduino C) |
6 × pin conversion port, 1 × USB B port, 1 × Bluetooth 2.4G port | Dimension (L × W × H) | 500 × 150 × 350(max.) | |
Communication | Micro USB, Bluetooth 4.1, IR | Net weight | 1800g |
