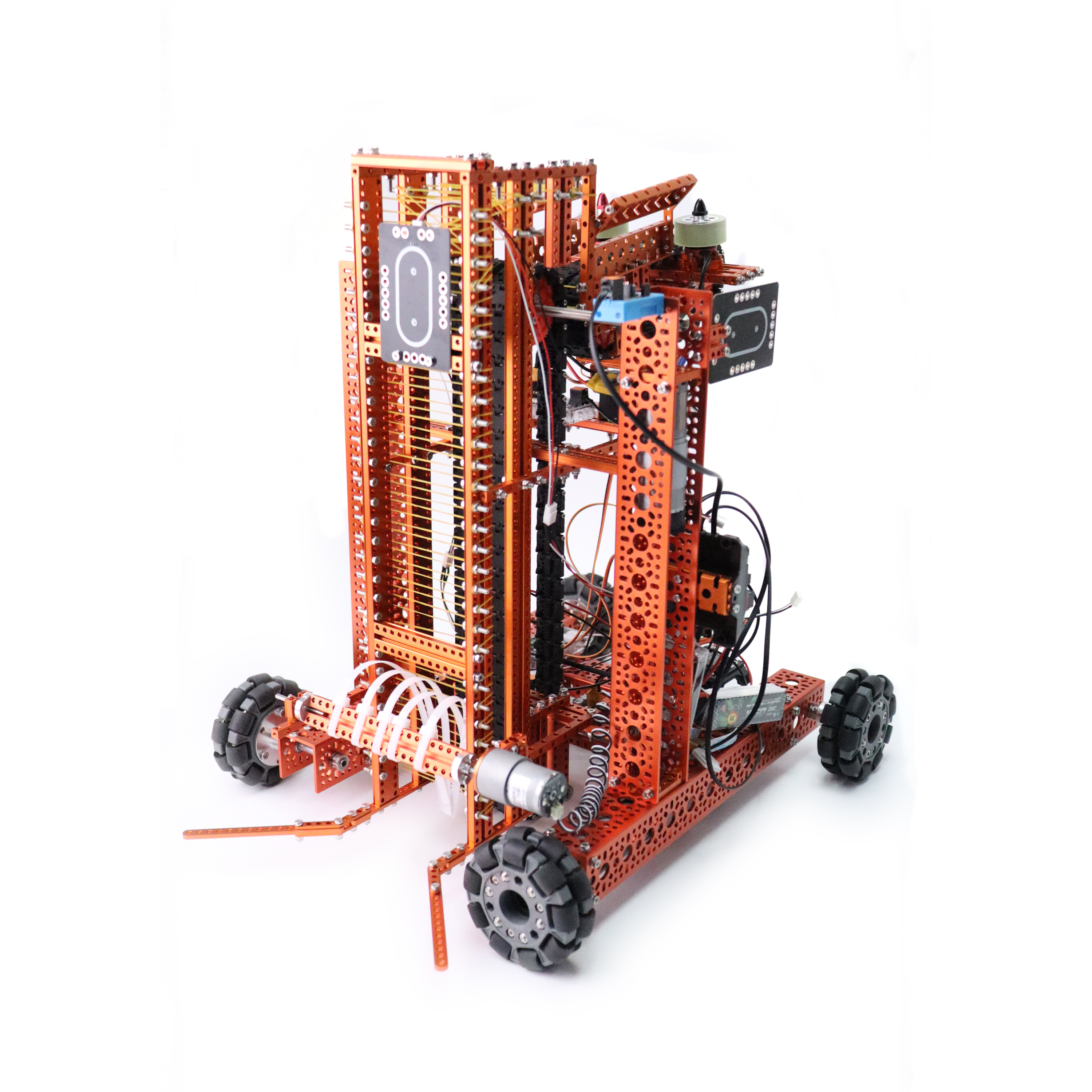

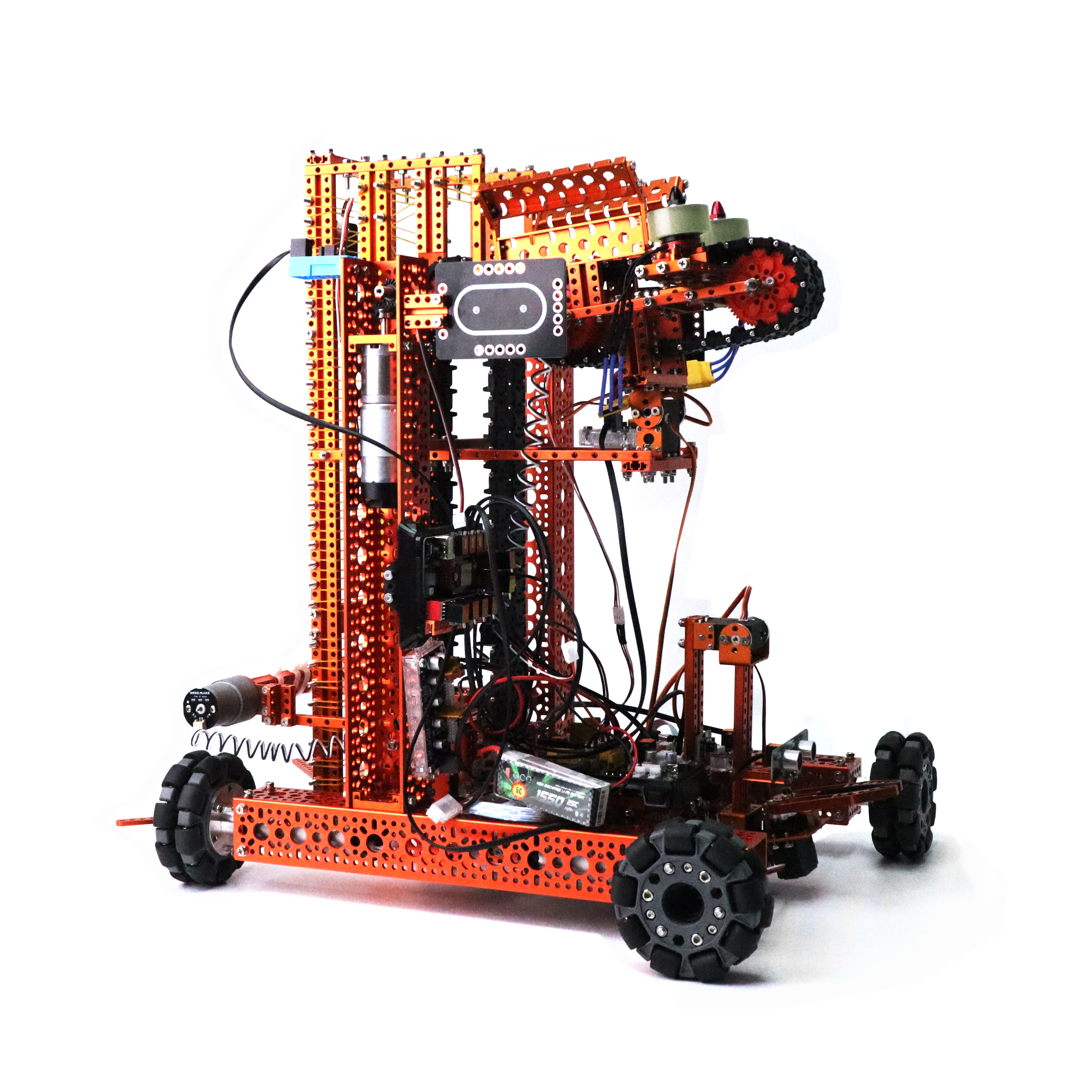

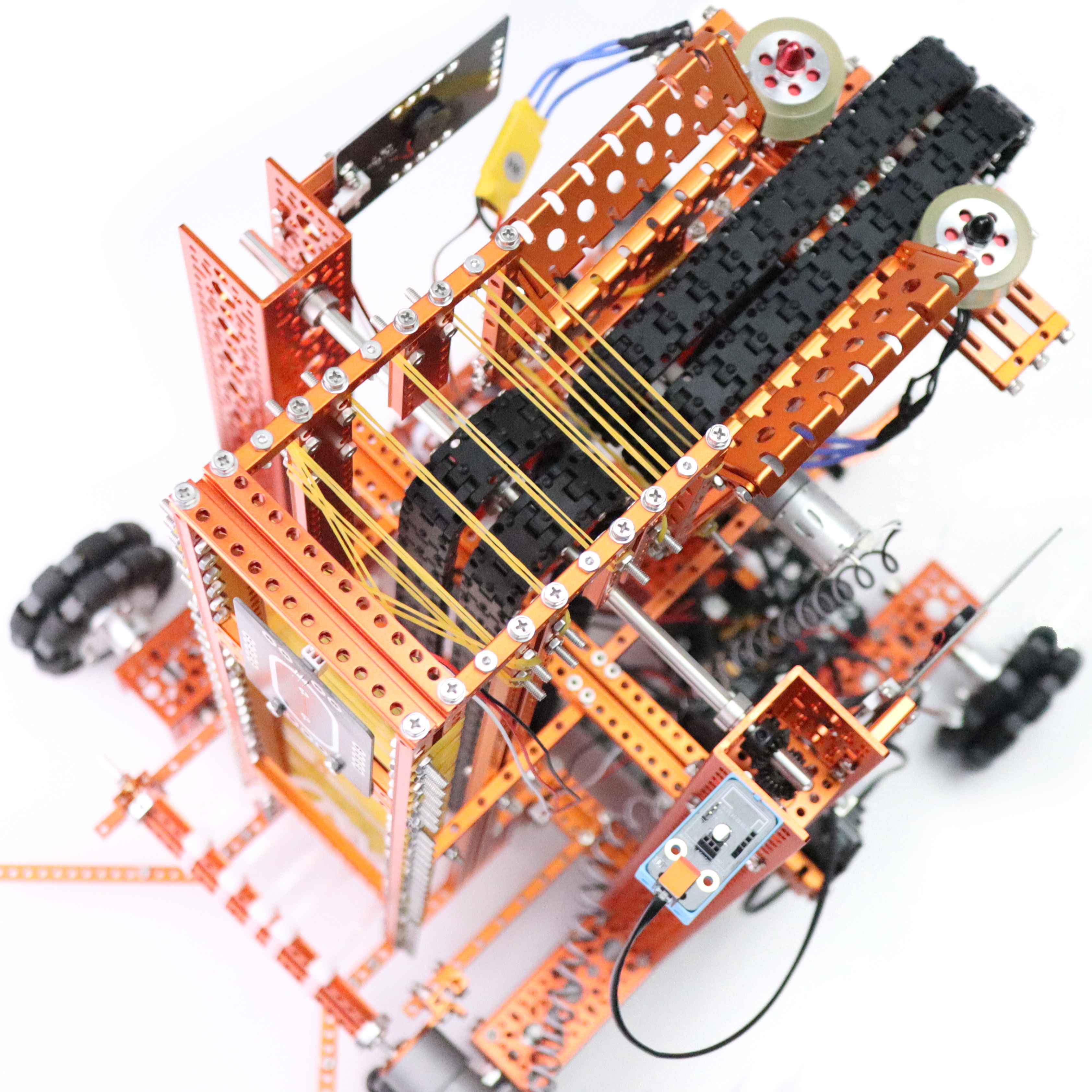

WeeeFight Robot Competition

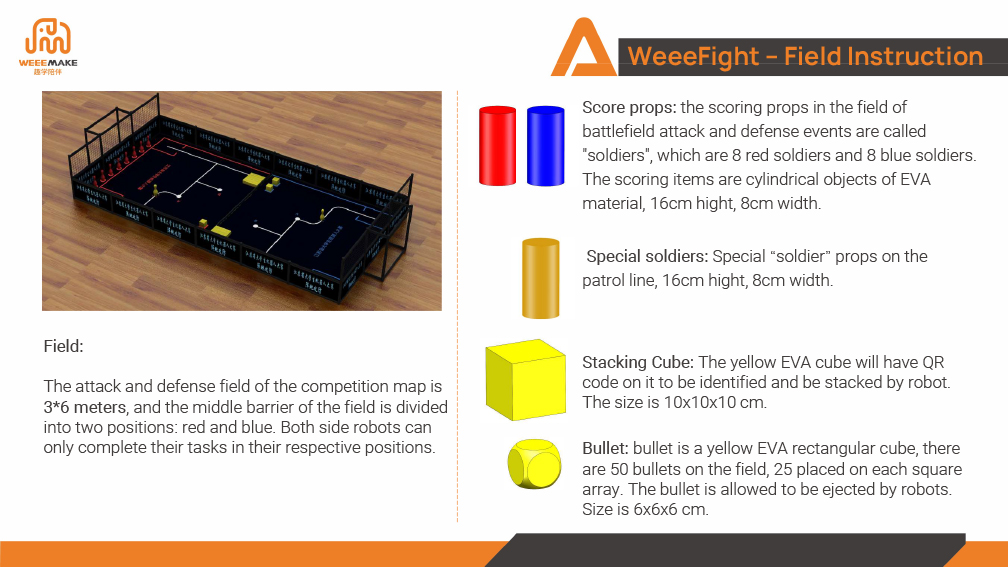

WeeeFight is a robot competition for colleges and universities designed by Weeemake. It applied offline artificial intelligence in battlefield offensive and defensive senarios. WeeeFight can be used to simulate the scenes of future battlefield offensive and defensive.

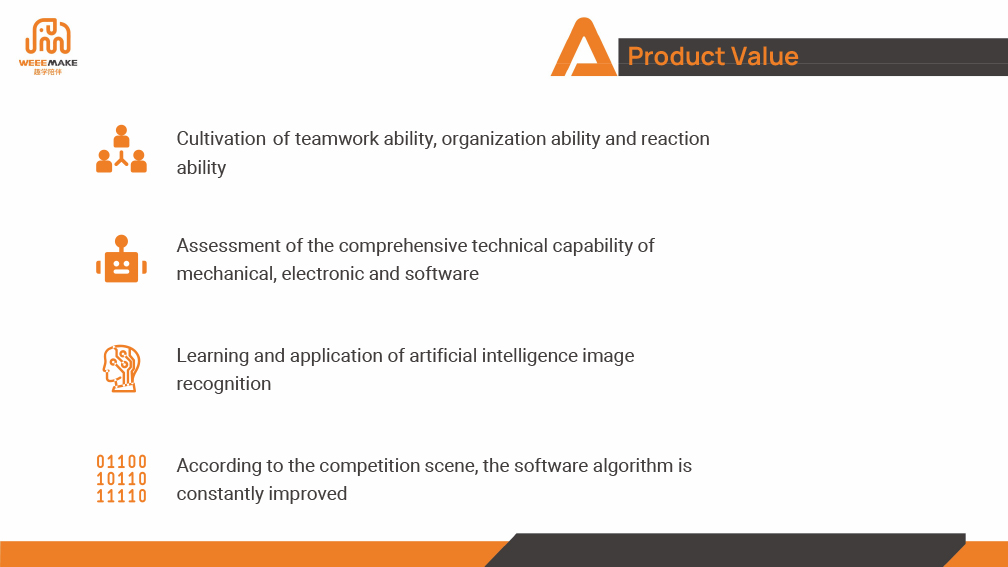

This set of products allows students to comprehensively learn robot technology, mechanical structure, mathematical knowledge, AI technology, and programming technology (software support graphic programming and Python text programming), and improve team collaboration capabilities, on-site response capabilities, etc. Comprehensively cultivate students ' hands-on practical ability, programming and algorithm applications, comprehensive application of electromechanical integration, and improving students' comprehensive scientific literacy and engineering literacy.

Availability:

Quantity:



Inquire Add to Basket

Parameter

Product name	WeeeFight Competition Robot Kit	Applicable age group	Over 15 years old

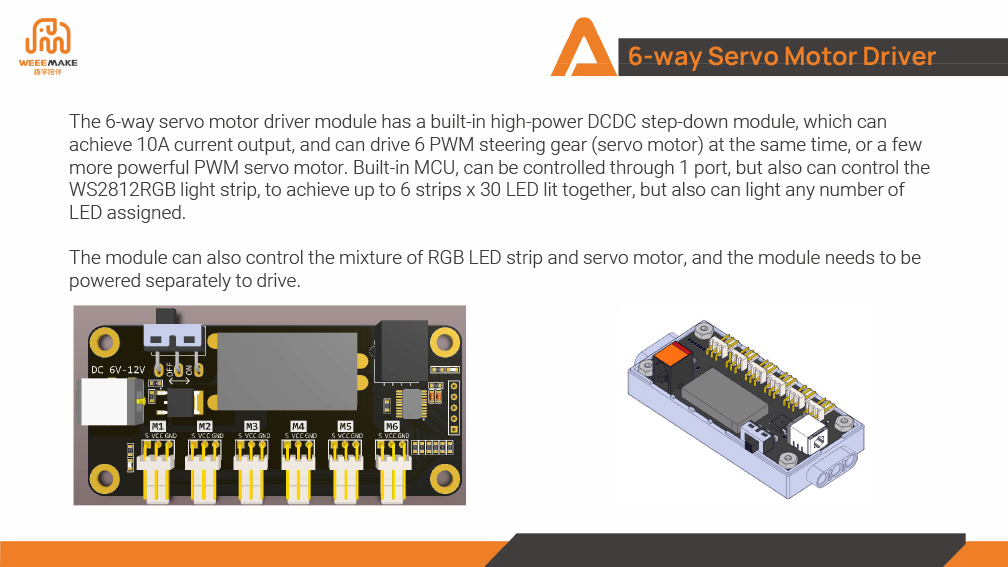

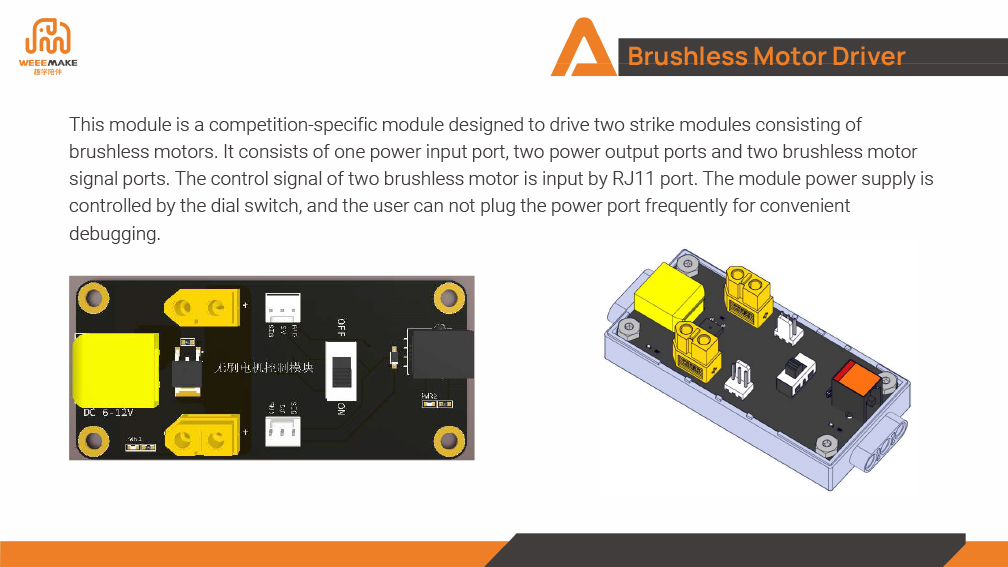

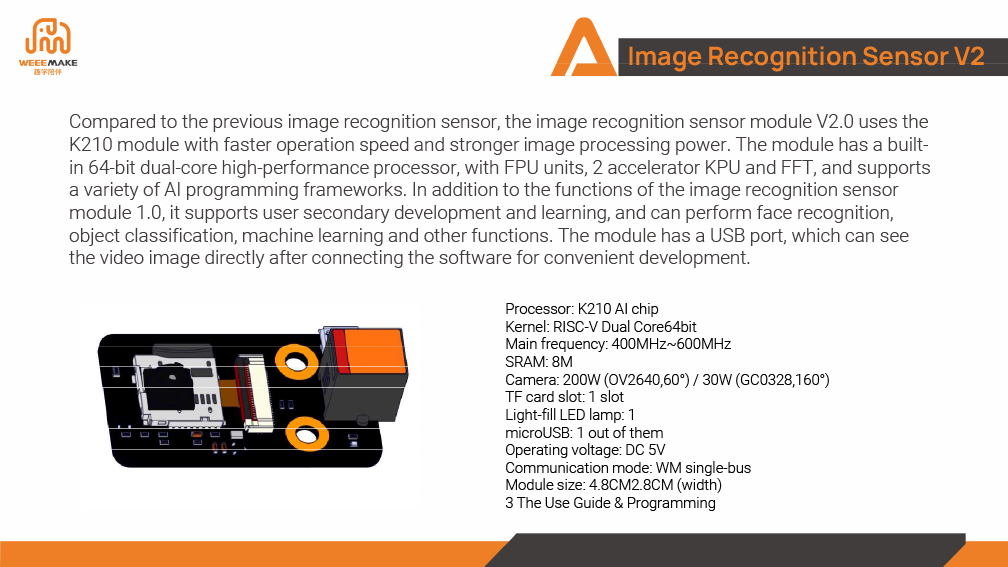

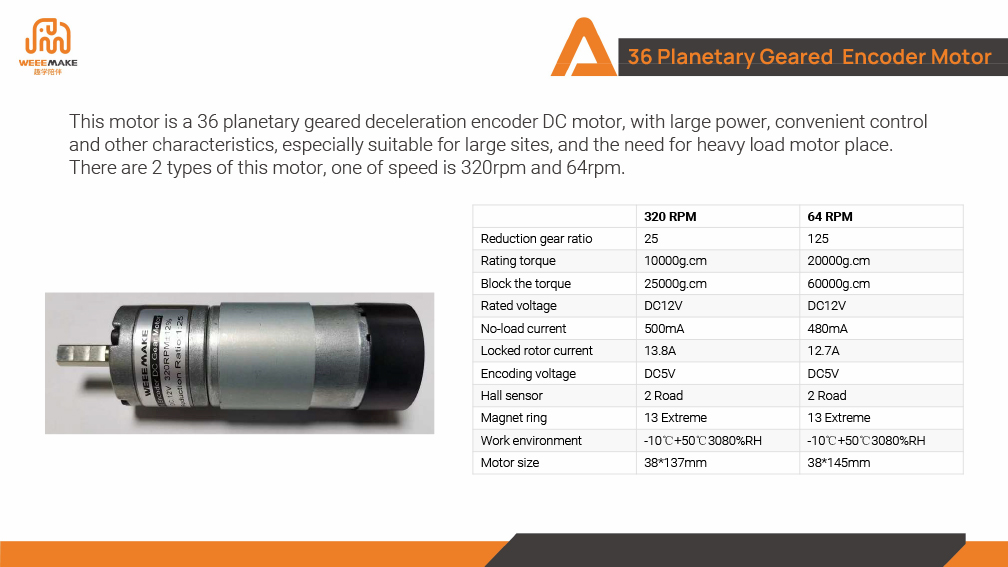

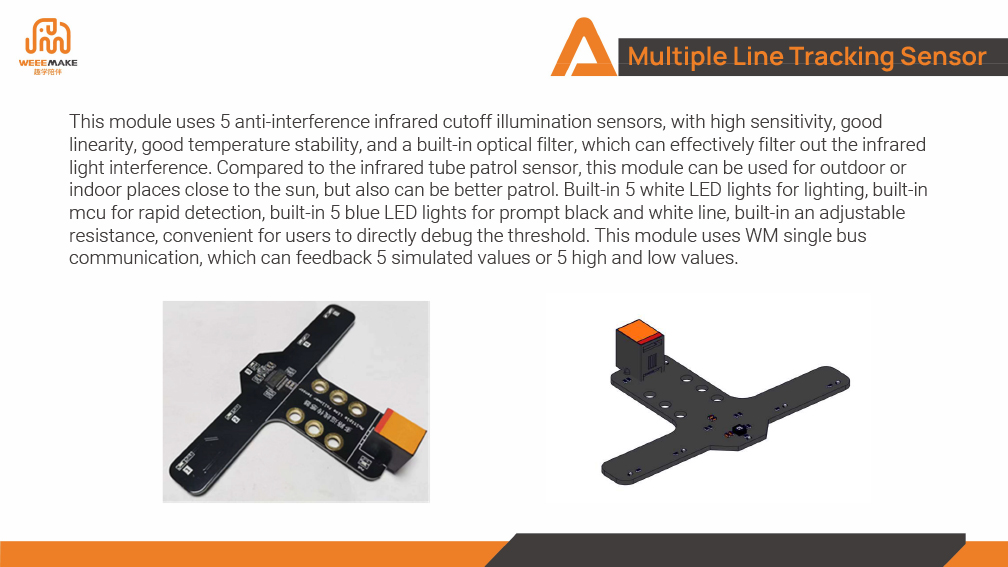

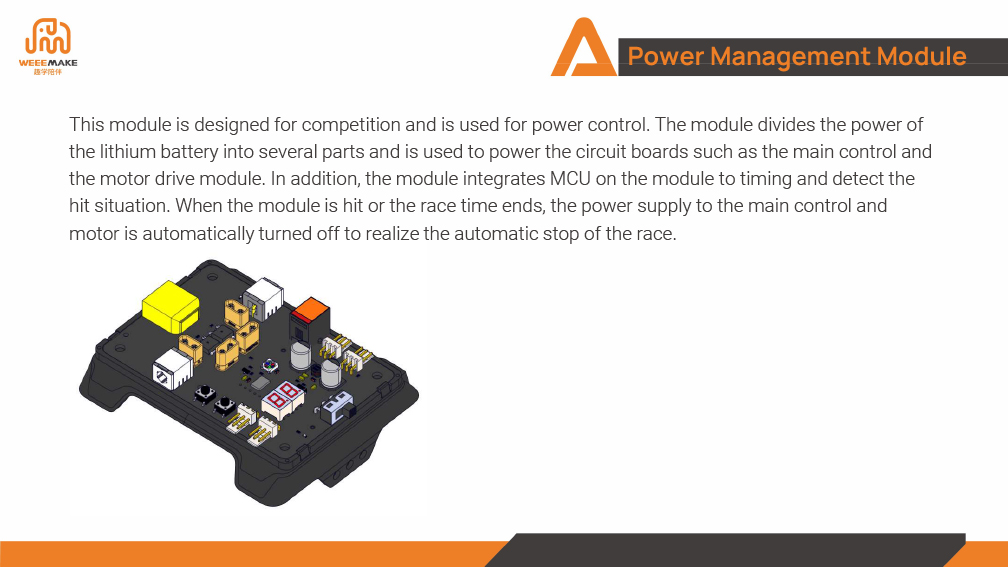

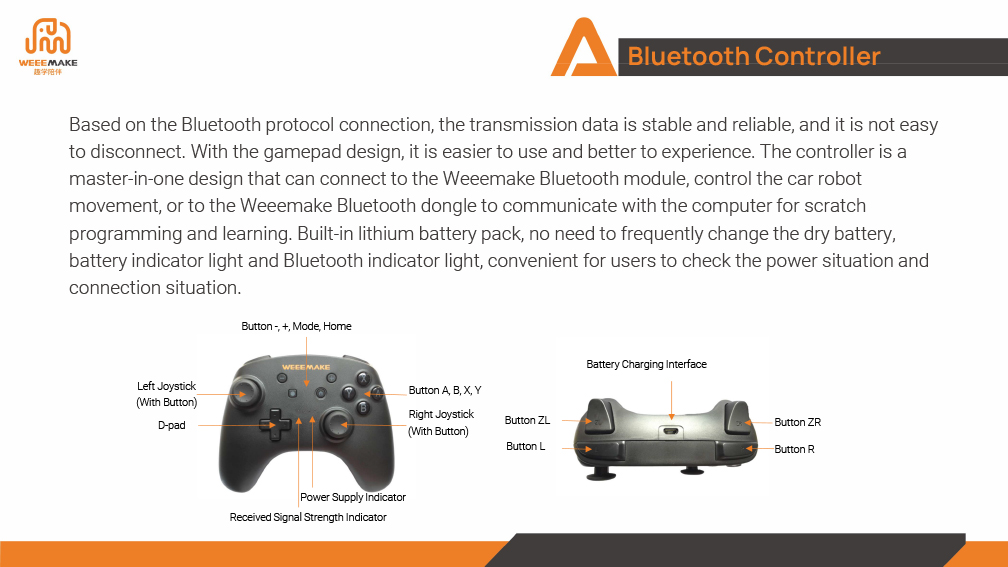

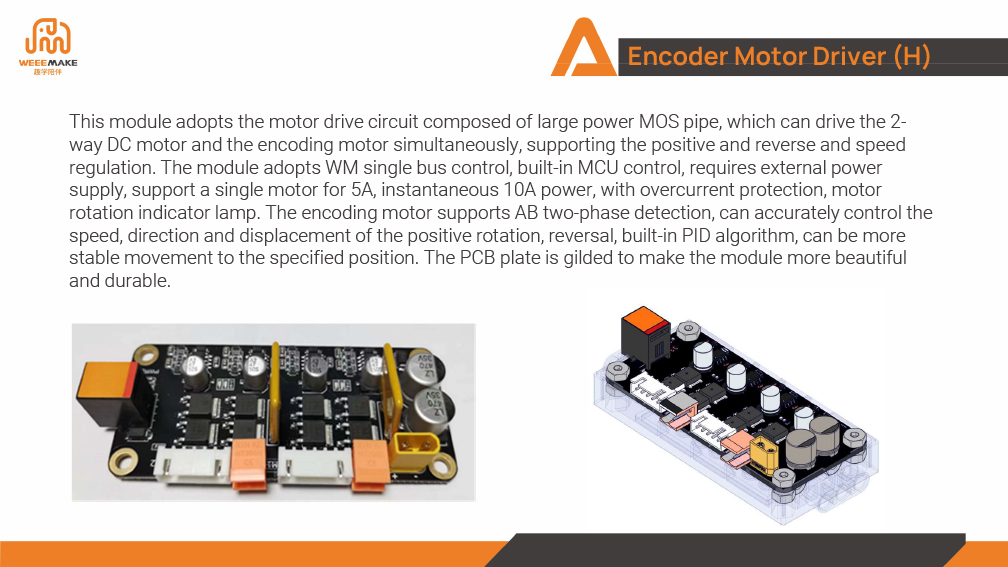

Electronic module	ELF ESP32 Pro, the main control board The Image Recognition Sensor module V2.0 Bluetooth controller Bluetooth module Power management module Beat the module Brushless motor drive module High-power encoding motor drive module, 6-way rudder machine drive module Brush-free electric adjustment 36 Encoding motor Brush motor Steering gear, 37 motor, image recognition sensor Multipatrol sensor ultrasonic sensor	ESP32 core module basic parameters	Input voltage: DC 5V; operating voltage: 3.3V
			Master control chip: ESP32-WROOM-32D module 8M
			Reset button: 1; programmable LED lamp: 1 (blue) (IO15); row driver: 28 pins (anti-reverse design)
			Module size: 33mm * 28mm (length * width)

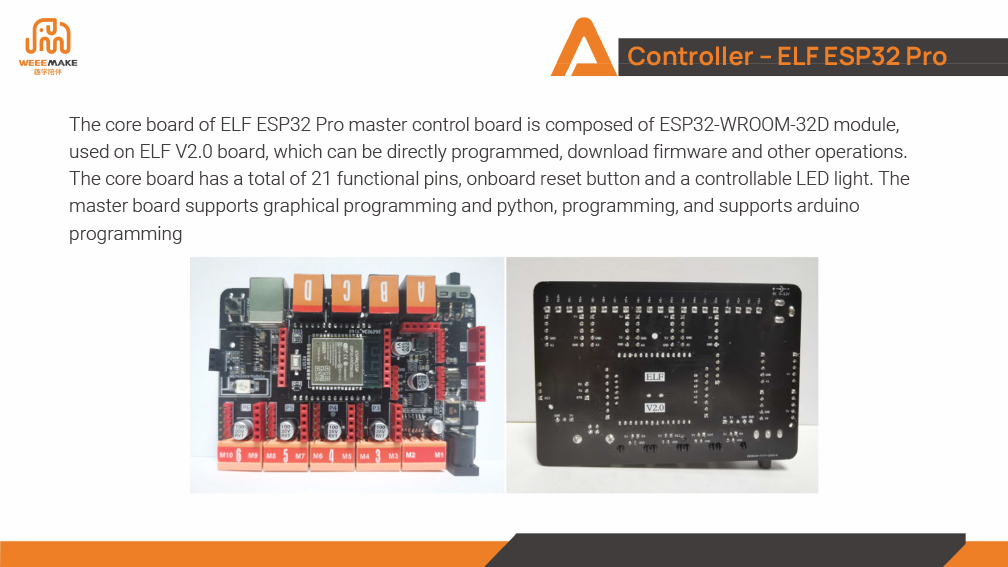

		ELF ESP32 Pro	Operating voltage: 5V
			1x Onboard button; 1xonboard RGB LED; 1 x buzzer; 4x RJ11 port A, B, C, D, Can be very easily connected to the WM RJ11 series of electronic modules; Pin port 1,2, The pin-type sensor can be directly connected and converted to the RJ11 port; The pin port 3,4,5, and 6 can be converted to the RJ11 port; DC motor port M1, M2; The DC motor port M3~M10 shall be connected with the DC / coding complex motor drive module or the stepper motor to drive at the corresponding port; Plug-in to either MEGA-328P or MEGA-2560 or ESP32; Wireless communication port: connect to bluetooth module port; Wired communication port: USB-B
			Dimensions (LxWxH): 88x75x20mm
			Power supply voltage: DC 6-12V
structure	The 100mm omnidirectional wheels, couplings, tracks, shaft, bearings, gears, keys, aluminum construction parts, etc

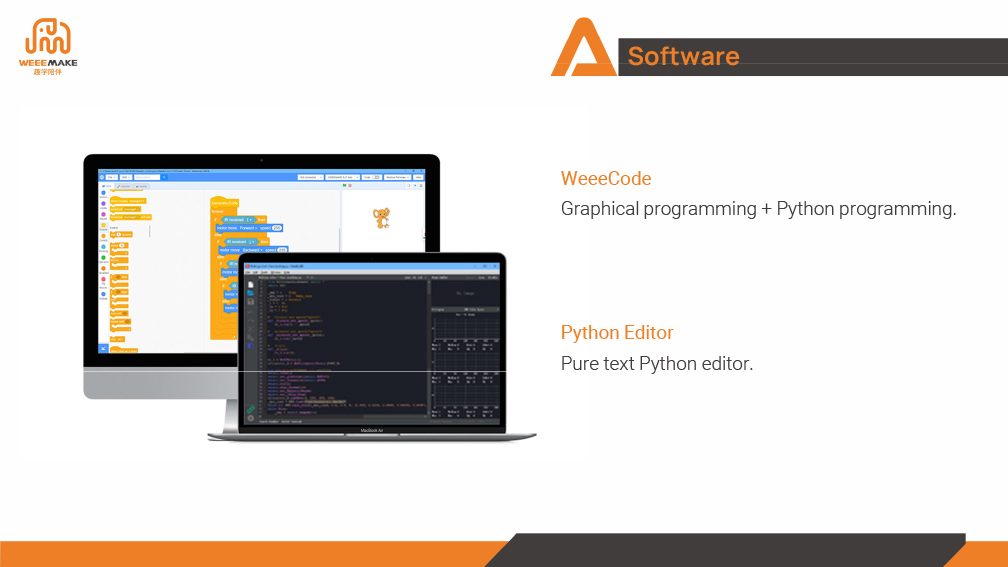

Programming environment	WeeeCode; MaixPy IDE	Programming language	Graphical Programming, and by MicroPython
