Parameter
No. | Part Name | Quantity |
1 | Contest Map 120cm x 240 cm | 1 |
2 | Slide Beam 0824-272 | 1 |
3 | Slide Beam 0824-64 | 1 |
4 | Beam 1030-100-B | 2 |
5 | Linkage 0208-160 | 1 |
6 | Bracket 3x3 | 1 |
7 | plate 9x9 | 1 |
8 | ELF Mini Mainboard | 1 |
9 | ELF mini Acrylic Bracket | 1 |
10 | Plastic Rivet 2064 Package（4 in Pack) | 1 |
11 | RGB Ultrasonic Sensor | 1 |
12 | RJ11 to Adapter Module | 1 |
13 | 9g Servo Motor Pack | 1 |
14 | 4P4C RJ11 Cable -35cm | 1 |
15 | 4P4C RJ11 Cable -20cm | 1 |
16 | Screw M4*8 | 4 |
17 | Screw M4*14 | 16 |
18 | Screw M4*25 | 2 |
19 | Nut M4（50 in Pack） | 12 |
20 | 3.7V Lithium Battery Pack | 1 |
21 | M1.6-M4 Multifunction Wrench | 1 |
22 | 2.5mm Hex Screwdriver | 1 |
23 | PH1 Cross Screw driver | 1 |
24 | White Block | 5 |
25 | Red Block | 2 |
26 | Blue Block | 2 |
27 | Black Tape | 1 |
Description

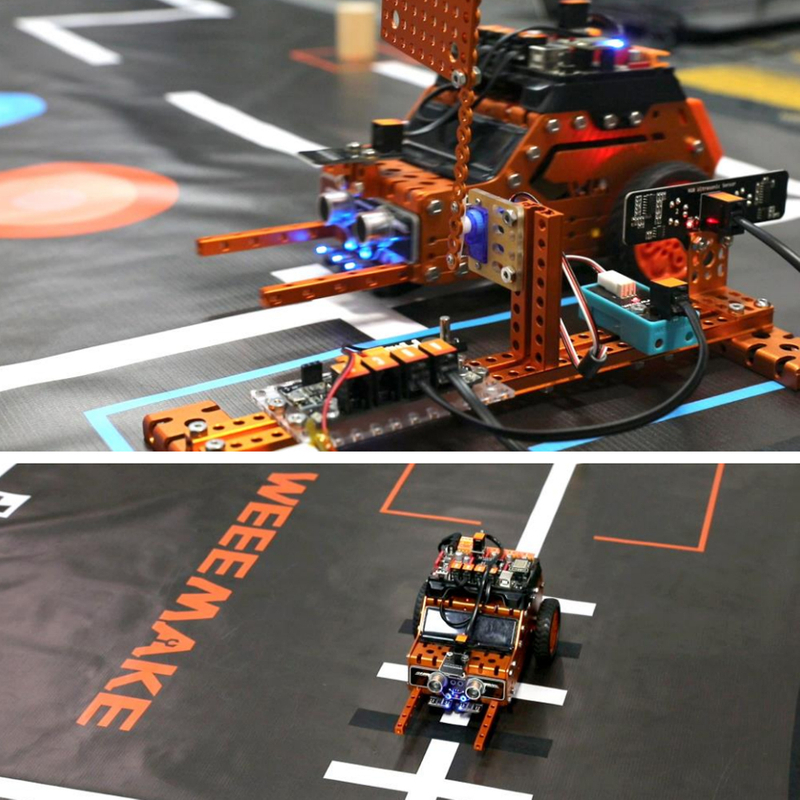

The kit includes all materials needed to set up field for WM robot challenge competition with at least eight tasks.
1. This kit contains one map, four white blocks, one red block, one blue block, one black tap, one set of anodized aluminium mechanical parts, one controller, one RGB Ultrasonic sensor, one servo motor pack, one adapter module, one 3.7v lithium battery pack.
2. Conest map
l Map size is 120cmx240cm
l Made of PU fabric or flex banner
l Printed white line with a width of 2.8cm for competition task.
3. Block
l 6 blocks in the kit: 4x white, 1x red, 1x blue
l Cylindrical block with a diameter of 4cm and a height of 5cm.
4. Mainboard: ELF mini V2
l Size should be ≤72*36*22mm
l Using ATmega328P mcu.
l Immersion gold PCB
l Be able to connect BT4.1 Bluetooth module.
l Onboard IR, buzzer module, light sensor, touch switch, sound sensor, etc.
l Support 3-6V voltage range.
l Support onboard charging.
l Support no less than 4 RJ11 module and 2 motors working together. No color label system.
l Use touch switch to turn on or turn off robot. Comes with rechargeable lithium battery, support external power supply and USB power supply.
l One toggle switch to support classroom applications.
5. RGB Ultrasonic Sensor
l Operating Voltage: 5V DC
l Detection Angle: ≤30°
l Detection Range: 4-500cm
l Resolution: 1cm
l Ultrasonic Frequency: 42kHz
l Probe Angle: 60°±15°
l Size: 100 x 32 x 30 mm
l Wiring Port: 4P4C RJ11, no color label limitation
l Built-in MCU
l Communication: 1-wire
6. Easy-wiring RJ11 port, using 4P4C crystal head RJ11 wiring cable. No color label wiring limitation.
7. Software.
l Drag & drop graphical programming software.
l Integrates Arduino IDE, Python IDLE shell.
l Support AI programming blocks such as image recognition, machine learning, weather, TensorFlow, etc.
