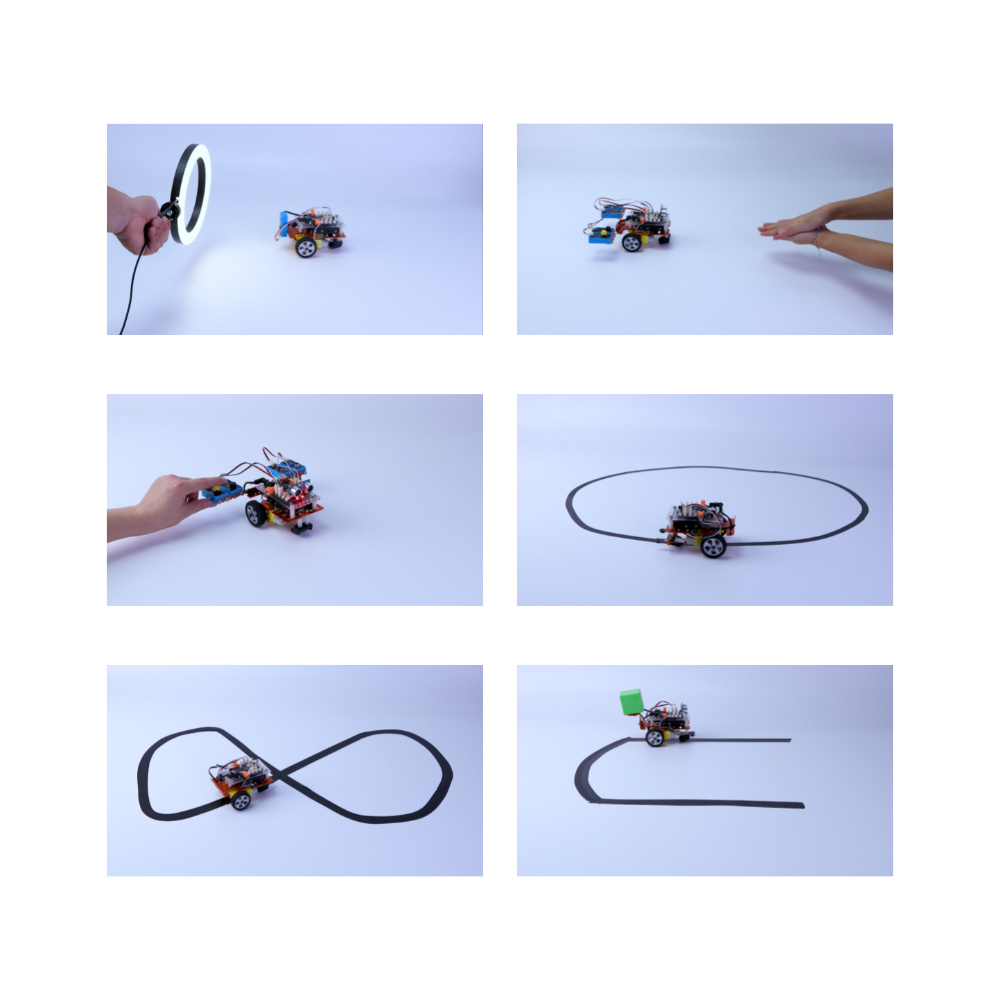

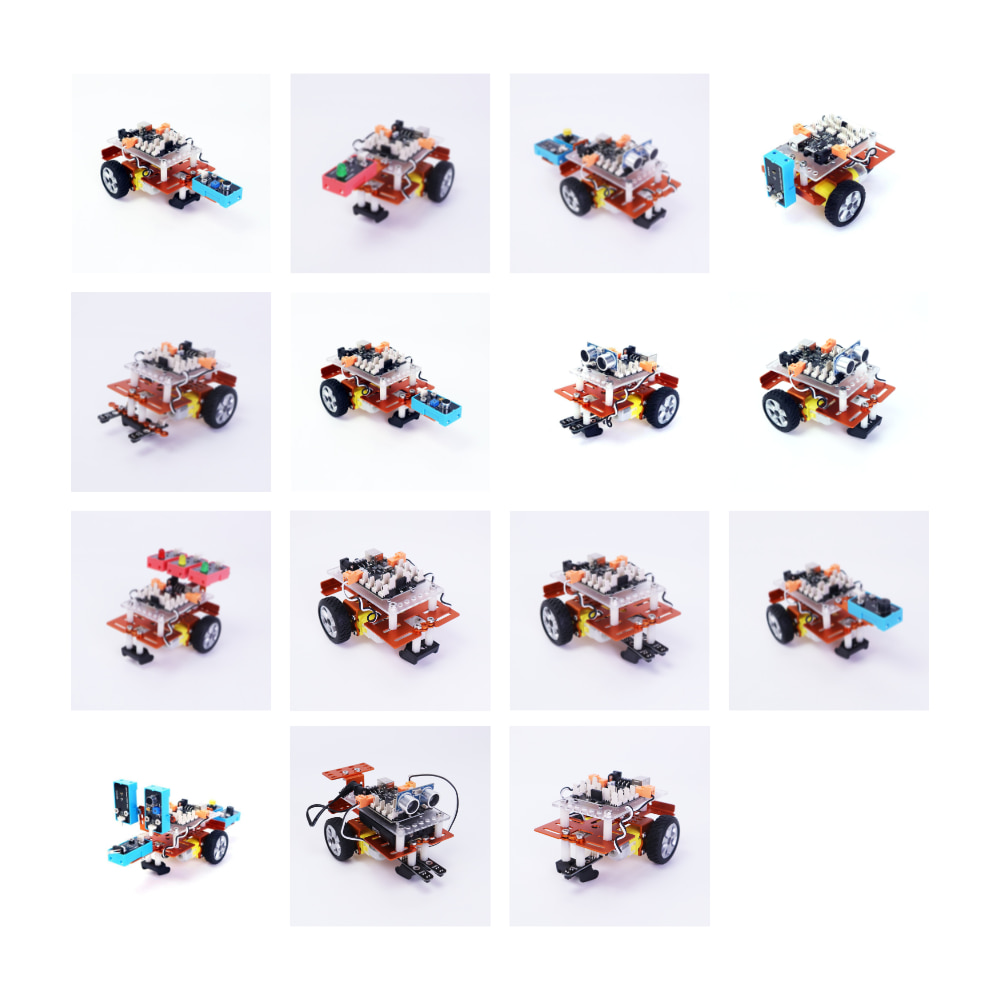

Mars Rover – Arduino Educational Robot Kit is an affordable open-source Arduino UNO STEM robot car chassis kit. This kit provides 14 interesting STEM robot projects with a Mars Rover theme. The ELF Uno controller integrated the easy-wiring KF2510 ports based on Arduino Uno, with 12 external electronic modules, this is a great value robot kit for entry-level.

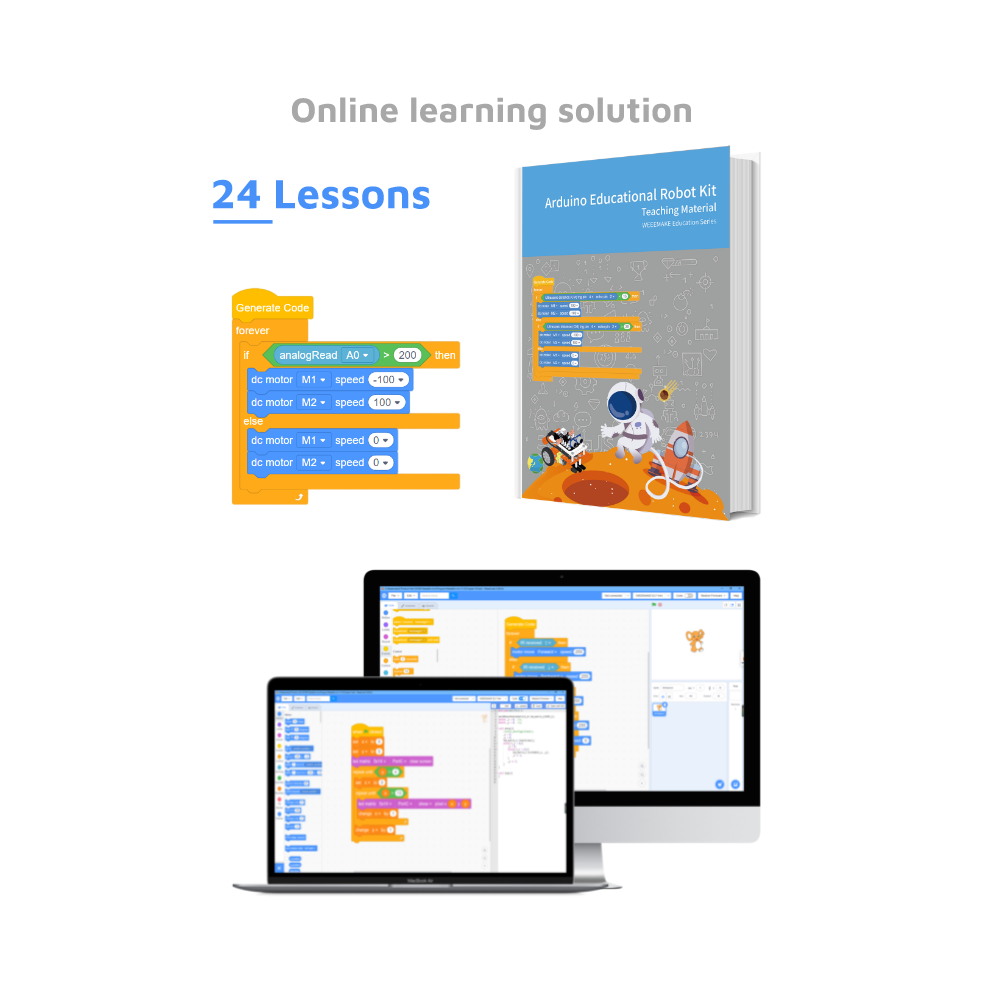

Durable anodized aluminum robot chassis plate offers more steady usage than other plastic or acrylic chassis, with flexible screw holes for expansion. 24 chapters lesson with WeeeCode graphical programming software support this new board.
![Educational Robot Kit](//upload.digoodcms.com/913/1667546059_Mars Rover Educational Robot Kit (1).png)
![Educational Robot Kit](//upload.digoodcms.com/913/1667546110_Mars Rover Educational Robot Kit (2).png)
![Educational Robot Kit](//upload.digoodcms.com/913/1667546135_Mars Rover Educational Robot Kit (3).png)
![Educational Robot Kit](//upload.digoodcms.com/913/1667546159_Mars Rover Educational Robot Kit (4).png)
![Educational Robot Kit](//upload.digoodcms.com/913/1667546187_Mars Rover Educational Robot Kit (5).png)
![Educational Robot Kit](//upload.digoodcms.com/913/1667546206_Mars Rover Educational Robot Kit (6).png)
Durable anodized aluminum robot chassis plate offers more steady usage than other plastic or acrylic chassis, with flexible screw holes for expansion. 24 chapters lesson with WeeeCode graphical programming software support this new board.
![Educational Robot Kit](http://upload.digoodcms.com/913/1667546059_Mars Rover Educational Robot Kit (1).png)
![Educational Robot Kit](http://upload.digoodcms.com/913/1667546110_Mars Rover Educational Robot Kit (2).png)
![Educational Robot Kit](http://upload.digoodcms.com/913/1667546135_Mars Rover Educational Robot Kit (3).png)
![Educational Robot Kit](http://upload.digoodcms.com/913/1667546159_Mars Rover Educational Robot Kit (4).png)
![Educational Robot Kit](http://upload.digoodcms.com/913/1667546187_Mars Rover Educational Robot Kit (5).png)
![Educational Robot Kit](http://upload.digoodcms.com/913/1667546206_Mars Rover Educational Robot Kit (6).png)
Mainboard: | ELF Uno | User: | Entry-level |
Chip: | ATmega328p | Serial Chip: | CH340 |
External Electronics: | 2x Line-following sensor | Wiring Port: | 8x 25103P port |
1x HC-SR4 Ultrasonic sensor | 4x 25104P port | ||
1x Light sensor | 1x Ultrasonic port | ||
1x Sound sensor | 2x DC motor port | ||
1x Button | 1x USB-B port | ||
1x Limit switch | Package: | Paper box | |
1x LED-red | Input Voltage: | DC6-10V | |
1x LED-green | Working Voltage: | 5V | |
1x LED-yellow | Working Current: | Max 1A | |
1x Buzzer | Power Supply: | 4x AA battery (not included) | |
Onbard Electronics: | 2x RGB LED | Size: | 130x170x106 mm |
1x Reset button | Curriculum: | 24 chapter |
