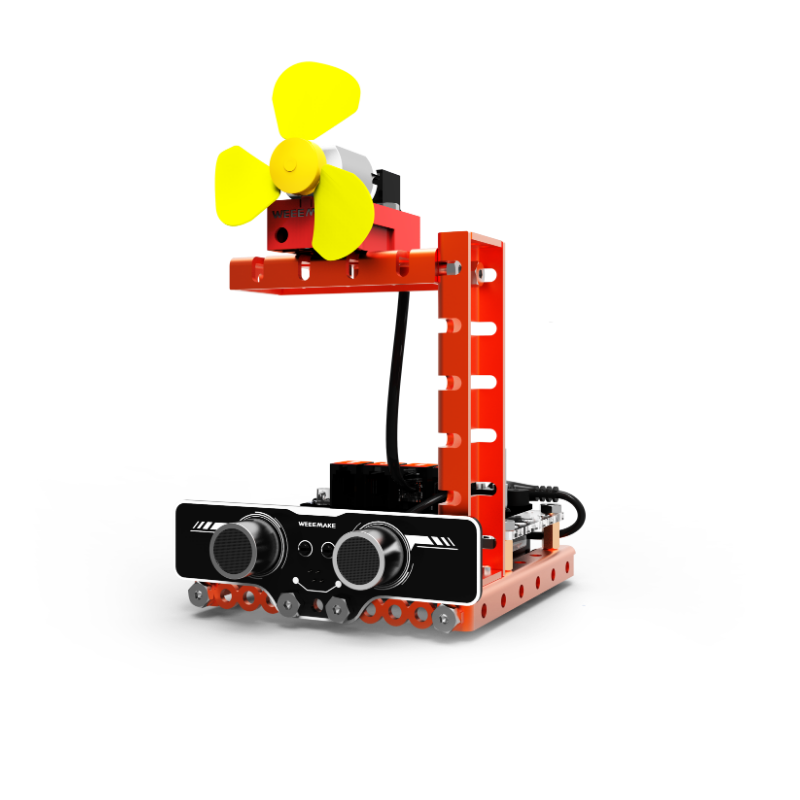

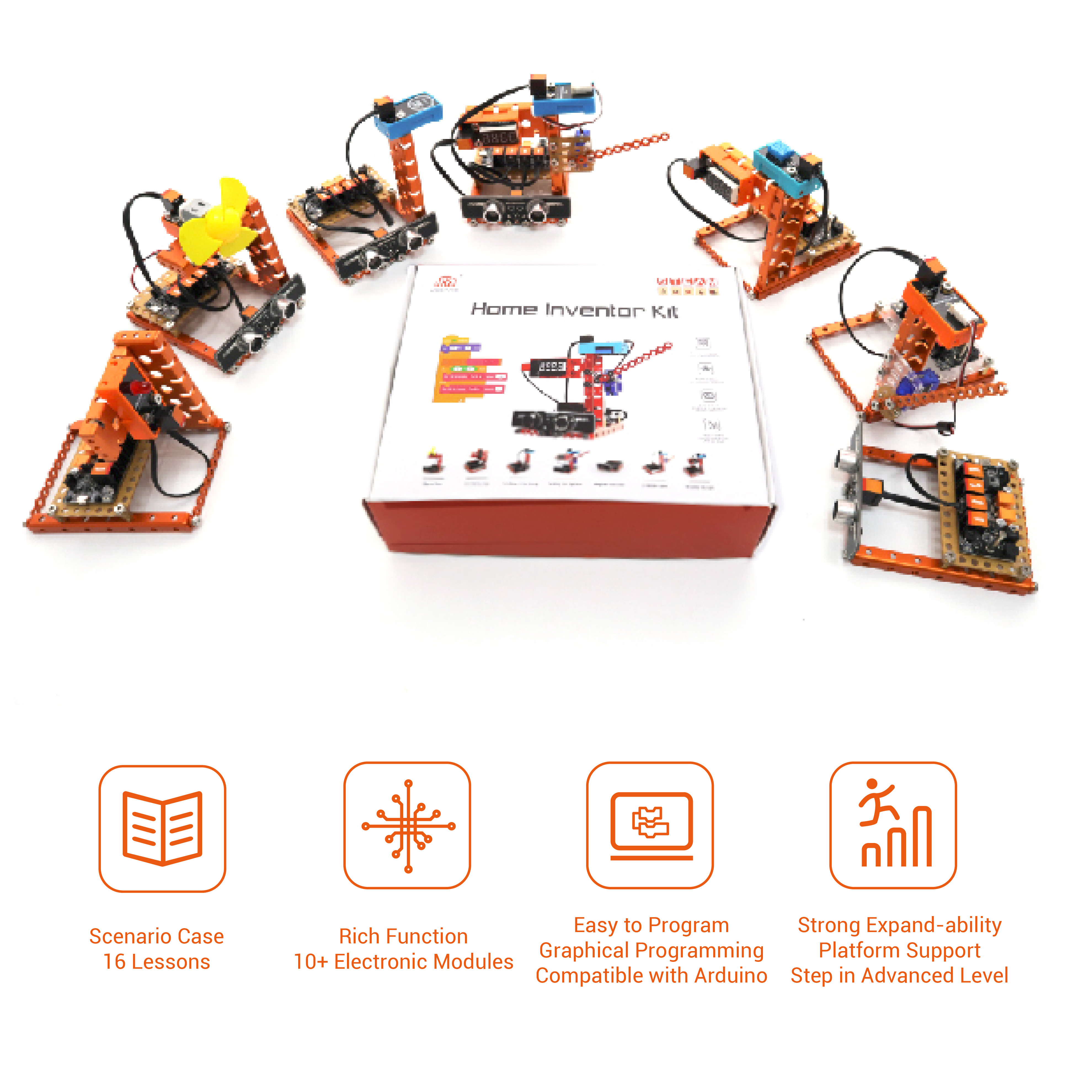

Home Inventor Kit

l SKU: 181002

l Mainboard:

• Name: ELF mini V2.1

• Microchip: Atmega 328P

• Port: 4 x RJ11 (connect to RJ11 sensor and modules)

             2 x DC motor port

             1 x Communication Port (Bluetooth)

• Electronics:  1 x Sound Sensor

                          1 x Light Sensor

                          1 x Buzzer

                          1 x IR Receiver

                          2 x Yellow LED

                          2 x Red LED

• Power Indicator: 4 x Blue LED

• Power Switch: 1 x Touch Swith (turn on/off robot by touching when toggle switch is off)

                              1 x Toggle Swtich (when toggle switch is on, cannot turn off by touch switch)

l Sensor & Motor:

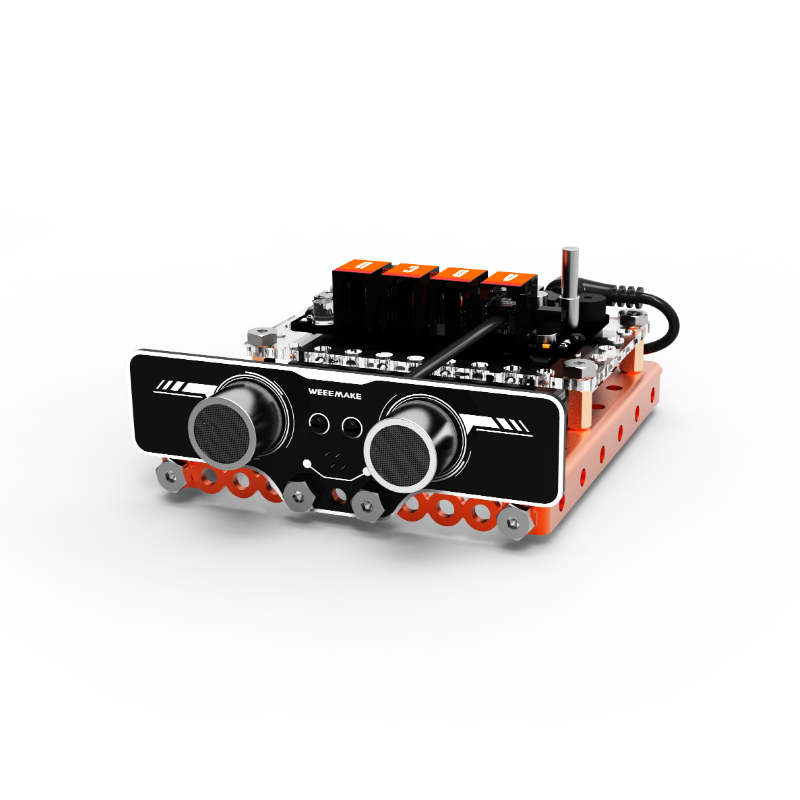

- 1 x RGB Ultrasonic Sensor (2 x RGB LED, 2 x Yellow LED, Ultrasonic Sensor)

- 1 x Touch Sensor

- 1 x 130 DC Motor Module (Fan)

- 1 x Temperature and Humidity Sensor

- 1 x Red LED Module

- 1 x RJ11 Adapter Module

- 1 x 4 Digital LED Display

- 1 x 9g Servo Motor Pack

l Tutorial: 16 chapters

l Software: WeeeCode (Scratch 3.0), Arduino IDE

l Operation Voltage: DC 3.7-6V

l Dimension: 26x20x6 cm

l Weight: 950 g

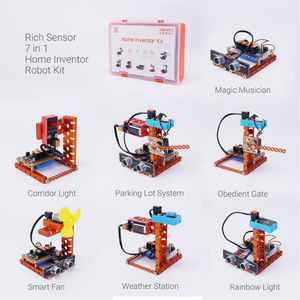

Weeemake 7 in 1 Home Inventor Kit is a desktop metal DIY programming robotic kit for STEAM education. As a starter robot kit for quick prototyping, this kit contains 6 input modules and 6 output modules with simplify wiring. Each module comes with Arduino library for quick programming. Create your own project!

In addition to Arduino programming, this kit supports graphic programming languages MIT Scratch (WeeeCode) which are great for teaching kids how to program and interact with hardware.

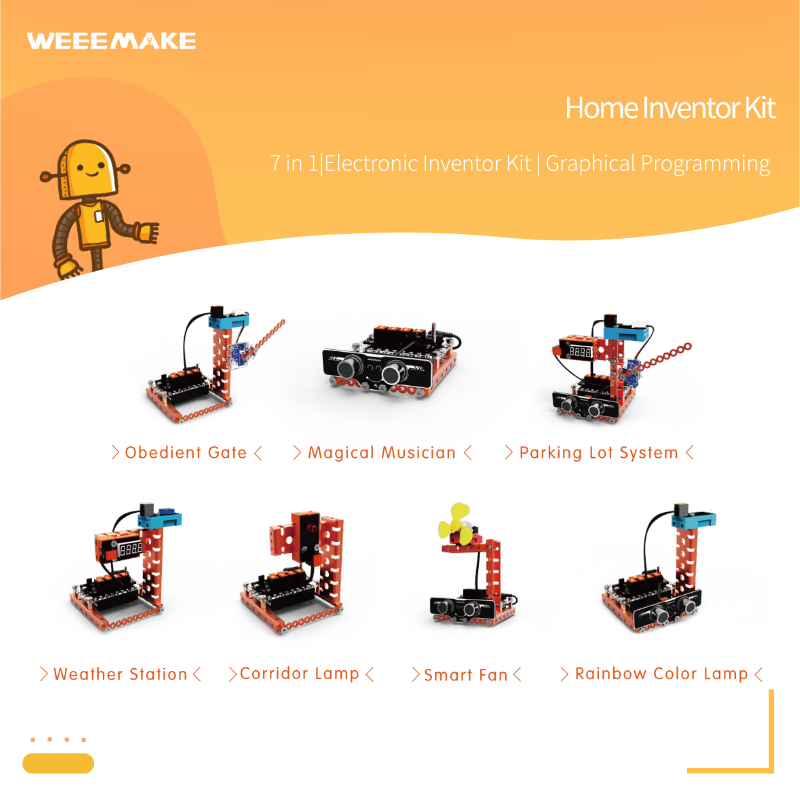

Projects

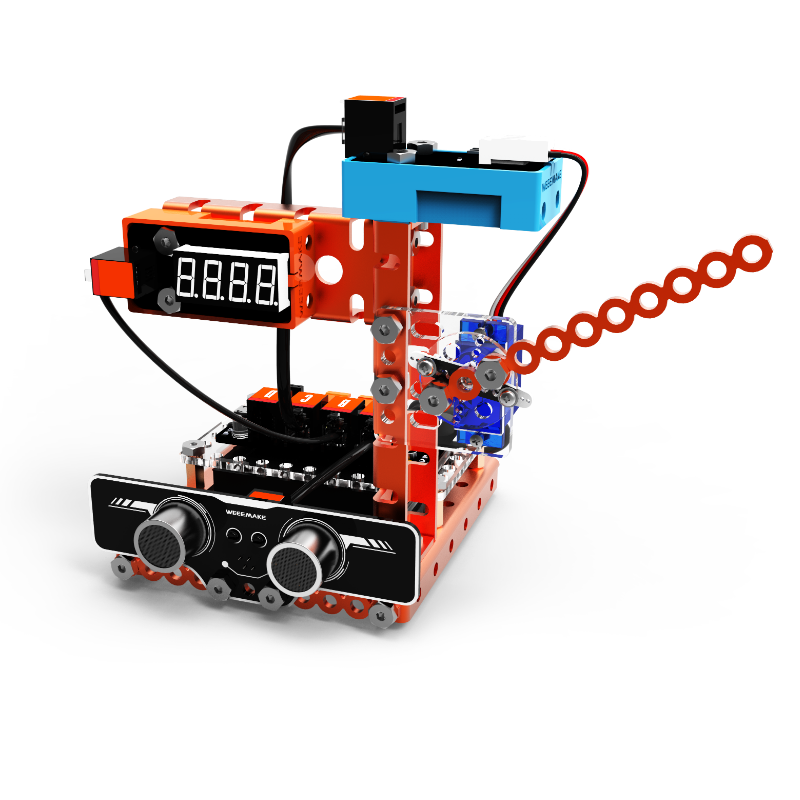

> Parking Lot System: Ultrasonic sensor will detect if any car needs to enter the parking lot; if yes, open the gate that controlled by servo, and count on LED segment display. If a car needs to leave the parking lot, use IR remote control to open the gate, and number on LED segment display will reduce by 1.
